- Zone Number: All types of wireless alarm detectiors
- Model Number: KL-Series Alarm Sensors
- Kit Configuration: Door/Window Sensor
- Power: Power by Batteries
- Connection Type: Wireless
- Arming Type: APP
- Video Interface: No
- Display: No
- Password Keyboard: No
- Brand Name: KONLEN
- Smart home platform: Other
- Origin: Mainland China
- Certification: NONE
- Wireless Frequency: 433MHZ
- Chip Code: EV1527
- Timing Resistor: 330K
- Model:: KONLEN kerui KL-Series Wireless Alarm Sensors
Note:Â
1. If you buy accessories together with our alarm systems kit at same time in one shipment, all types of door sensors, remotes, wireless sirens include batteries, but others, such as PIR detectors and smoke detectors don’t include batteries.Â
2. But if you only buy accessories separately (without alarm systems kit), all the accessories will come without batteries except of wireless strobe sirens
Wireless Door Sensor :Â
The specification of 3 types of wireless door/window sensor
Wireless Radio frequency: 433mhz
Chip Cod Form: EV1527 with 330K resistor
Transmission Distance: About 20 to 40M indoor;100m in open area(no obstacle)Â Â Â Â Â
Wireless Pir motion sensor :
The specification of 3 types of PIRs
Powered by 1.5V AA or 1.5V AAA battery (Battery not included）
Wireless Radio frequency: 433mhz
Chip Cod Form: EV1527 with 330K resistor
Transmission Distance: About 20 to 50M indoor;120m in open area(no obstacle)
Detection Range: Horizontal 110°, Vertical 45° to 60°
Detection Distance: About 6 to 10M
Installation Height: 1.8 to 2.5m (2.2m is recommanded)

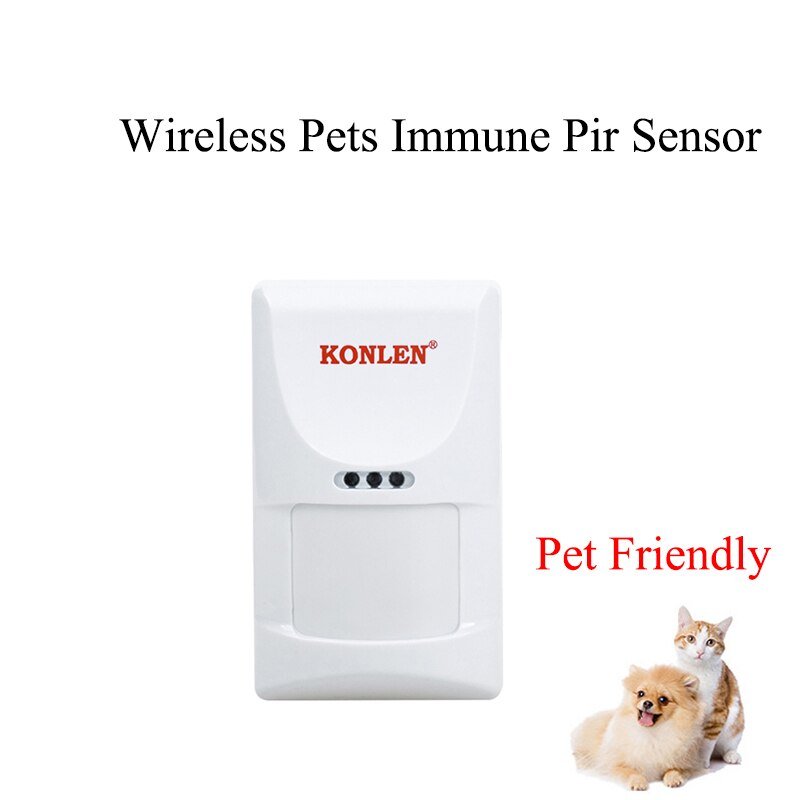

Wireless Pet Immune pir sensor :
Powered by 2*1.5V AA battery (Â Battery Not included)
Operation current: 20uA(stand by); 14mA (alarm)
Installation height:1.8m-2.4m
Detection distance: 12m*12m @ 110 degree
Wireless transmission distance: Over 200m in open area (no obstacle)
Sensitivity: High or Low adjustable
Pet immunity: 20Kg Max
Wireless outdoor Strobe Siren :
Input Voltage : DC12V, AC100-240V
Sound Volume : 115 ~120 db
Backup battery and external power adapter included

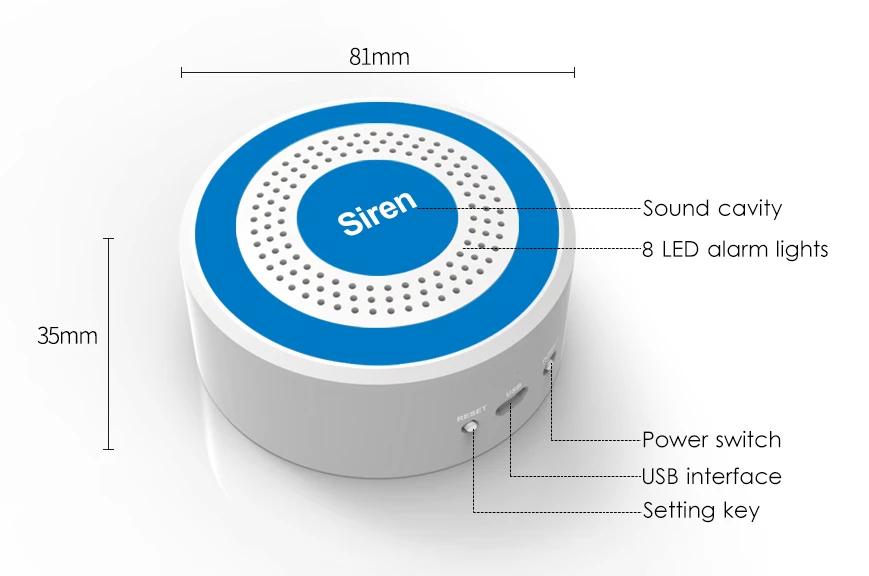

Wireless Indoor Siren
Power output: DC5V 1A, AC100 to 240V
Standby current: ≤13mA
Alarm current: ≤230mA
Wireless Frequency: 433MHz
Siren Volume: 110db more or less
Backup battery and external power adapter included
Wireless Gas Leak detector :
Mainly used in flammable gases (such as LPG gas, natural gas, methane, etc.) leak places, to detect whether the leakage of combustible gas, to protect the personal and property safety!
Powered by AC100v to 240V,Â
EU/US power plug optional
Wireless Radio frequency: 433mhz
Chip Code Form: EV1527 with 330K resistor
Transmission Distance: About 20 to 40M indoor;100m in open area(no obstacle)Â Â Â

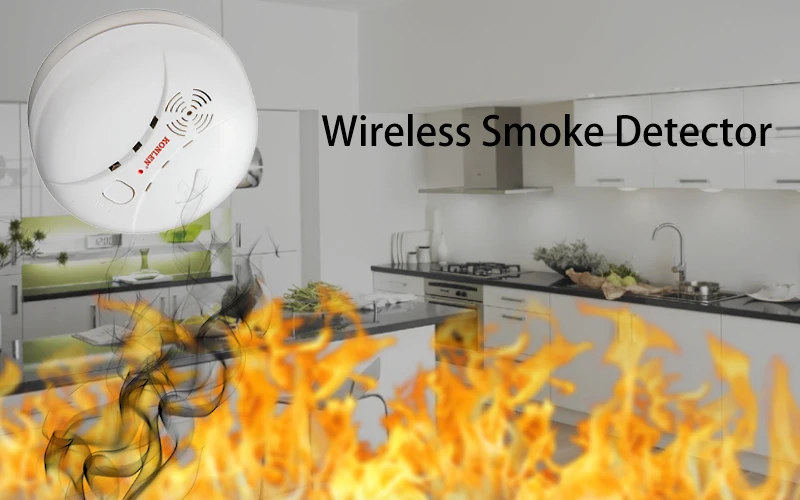

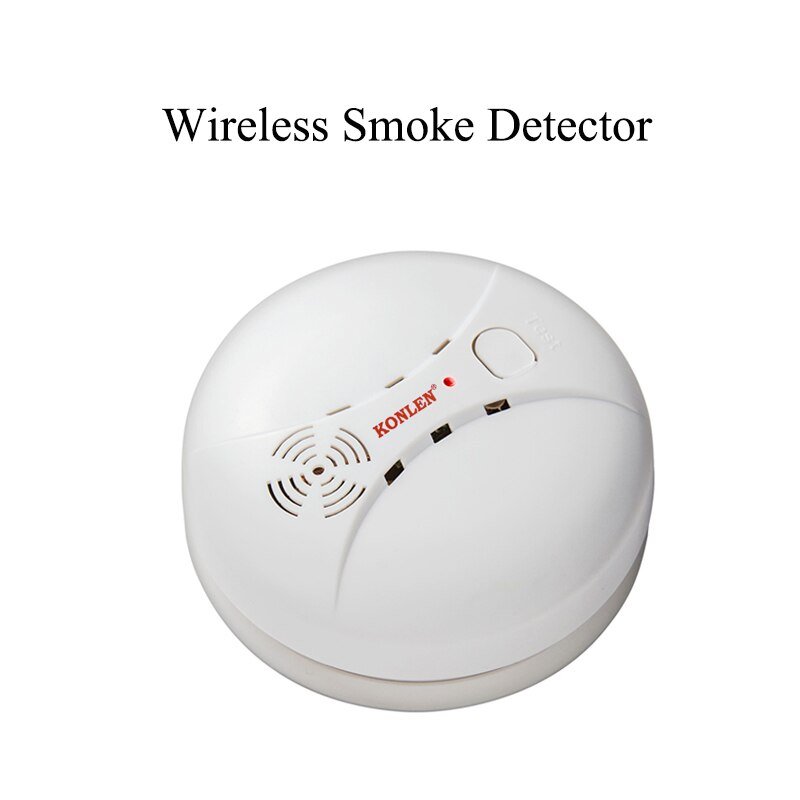

Wireless Smoke Detector :
Powered by 9V 6F22 Battery (battery not included)
Static Current: less than 10uA
Alarm Current: less than 20mA
Alarm Indication: Red LED flash
Sound Level: More than 85dB/m
Detecting Area: 20 square meter
Wireless Radio frequency: 433mhz
Chip Code Form: EV1527 with 330K resistor
Transmission Distance: About 20 to 40M indoor;100m in open area(no obstacle)Â Â

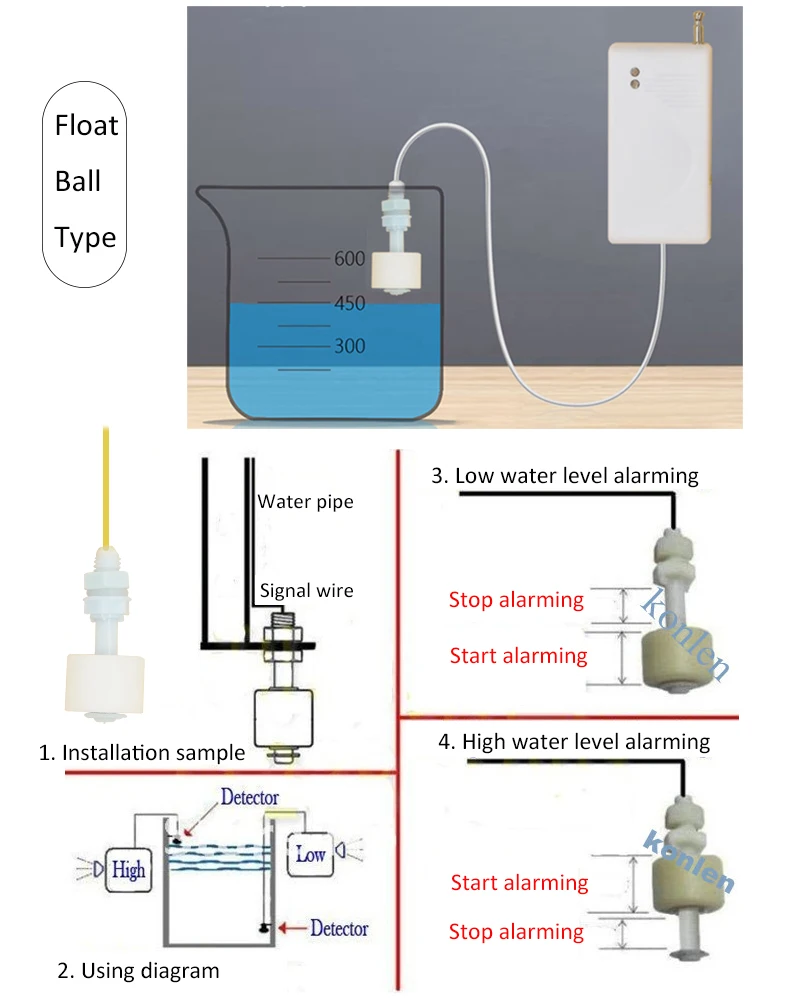

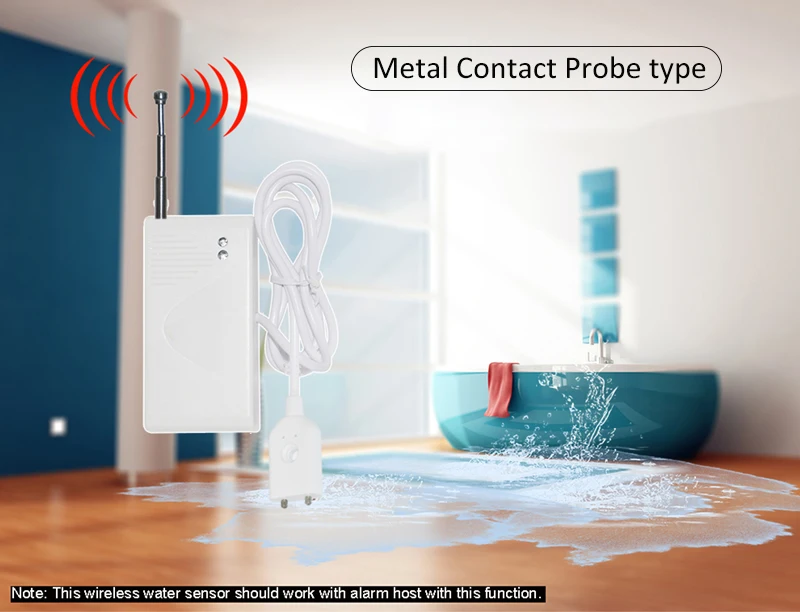

KL-WLD Wireless water leak detector (Floating ball or metal contact probe optional)
Â
Use for detecting water leakage. Easy-to-used and operated.Widely for bathroom and any place where needs to protect water leakage. It is includes one transmitter and one float
Â
Technical parameter
Power Supply: 12V 23A battery (not included)
Wireless frequency: 433MHz
Chip code:Â EV1527 with timing resistor 330K
Transmission Distance: About 20 to 40M indoor;100m in open area(no obstacle)Â
Â
Â

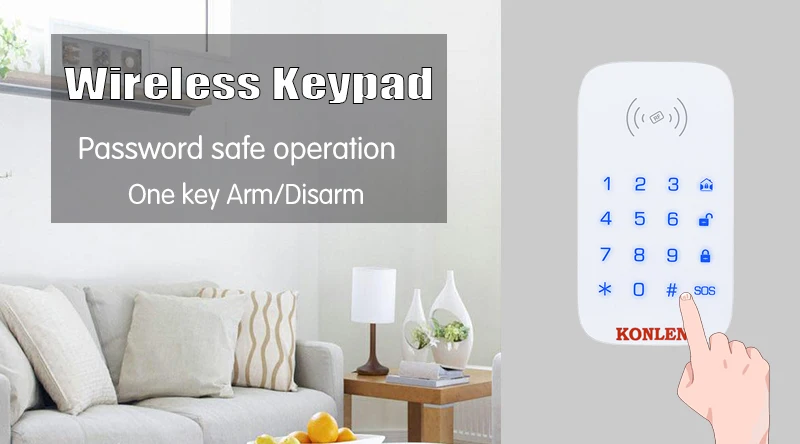

KL-WKP Wireless Keypad
Usually the wireless keypad is the most suitable to install in the entrance place.
1. Arm /Disarm KONLEN H25 H26 H36 alarm system by entering password
2. RFID Card function.
3. SOS emergency alarm
Â
Â
Â
Want to know whole series of alarm systems and Tuya Cameras, Tuya Sensors, please click the picture
Â
Â
Â
Â
Â
