- Brand Name: Aubess
- Origin: Mainland China
- Certification: CE
- Optional:: Presence Sensor/Strip Light Sensor/Zigbee Gateway Hub
- Communication mode:: Zigbee 3.0
- Beam angle light:: 120°
- Light sensing range:: 0~65000lux
- Input voltage:: 220V
- Product size:: 88mmx50mm
- Operating frequency:: 24Ghz
- Communication protocol: ZigBee Gateway required
Tuya Smart ZigBee Human Presence Detector Radar Detection Sensor Ceiling Photometric Smart Life app Ceiling PIR Micro Motion Hub
Description:
Communication mode: Zigbee 3.0
Operating frequency: 24Ghz
Beam angle light: 120°
Product size: 88mm*50mm
Light sensing range: 0~65000lux
Input voltage: 220V
Specifications:
[Communication protocol] ZigBee, which needs to be connected with
networking gateway
【Intelligent linkage】
It can create intelligent scenes with Tuya switches, lamps, curtains and other intelligent products to achieve energy saving, environmental protection, security alarm and other functions.
Cooperate with other intelligent devices to realize rich automation and scene control. Make smart hardware react faster and control more smoothly.
【Function introduction】 Real-time detection of human presence, micro-motion detection (human breathing, heartbeat, deviated head, finger movement, raising head, turning around, swiping cell phone, flipping book, etc.), motion detection (walking, trotting, running fast, turning circle, jumping and other movements).
【Accurate dynamic detection Static human presence
Static human presence This product uses advanced 24GHz millimeter wave radar technology to accurately detect whether there is someone in the area, breathing, heartbeat and other movements, whether moving or stationary.
Accurate identification and wide sensing range
Subtle human or animal movement Built-in high precision sensor, intelligent algorithm can accurately identify whether there is someone in the room, detect human breathing, heartbeat, swipe phone, movement and other dynamic static behavior

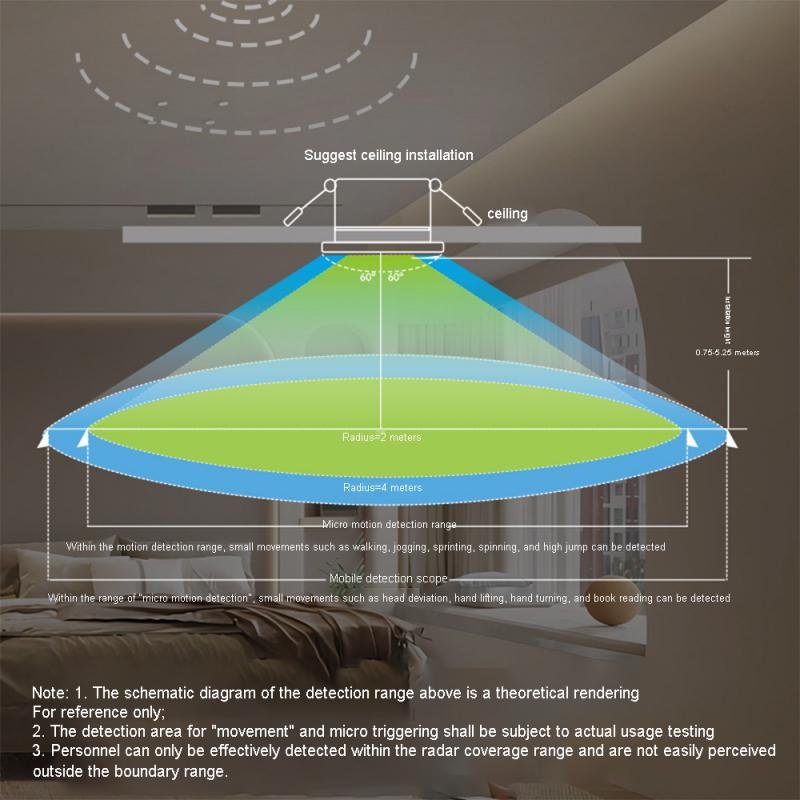

Ring detection range, sensing angle of 120 degrees Human micro-motion sensing radius of about 2 meters, motion sensing radius of 4 meters (installation height of 2-6 meters, ground projection)
Linkage lighting scenes, people have not arrived at the regional lights can be pre-light, people to the induction area lights are getting brighter and brighter, people go after the lights slowly become dark
Package Included:
1*sensor
Notes:
What are the main differences between 24G and 5.8G radars? 24G radar has higher sensitivity and more accurate departure delay time.
