- Condition: New
- CNC or Not: Normal
- Origin: Mainland China
- Certification: NONE

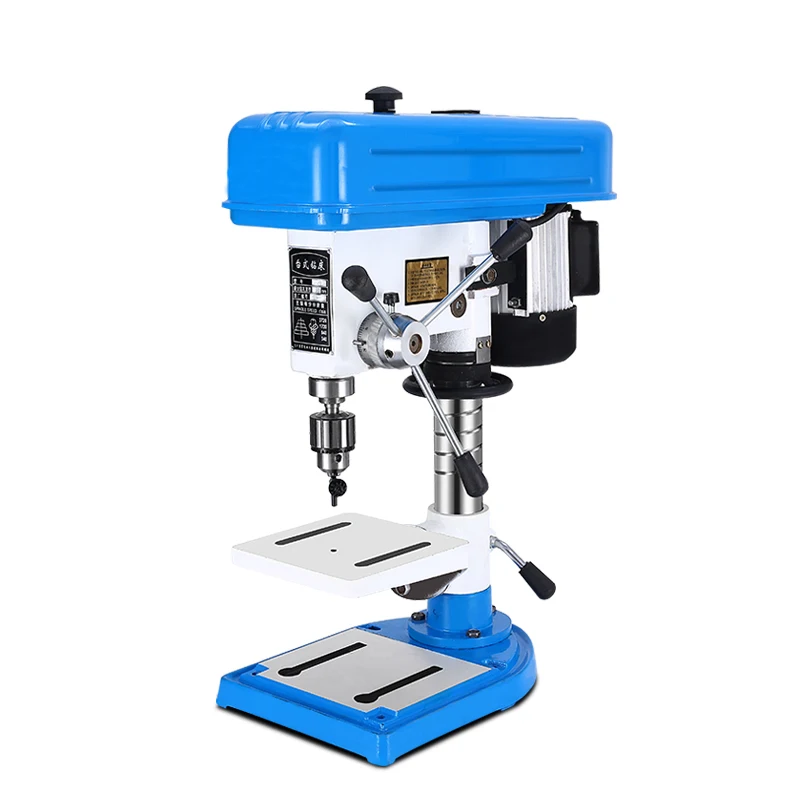

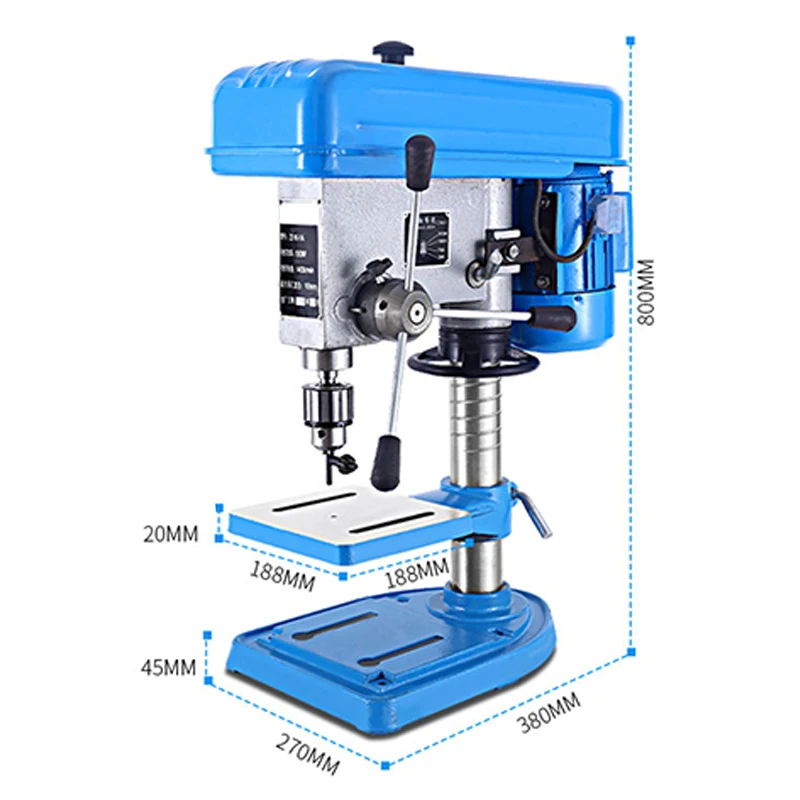

Model: 750w large 16mm bench drill
Borehole diameter: 3-16mm
Column diameter: 62mm
Maximum stroke of main shaft: 80mm
Distance from spindle centerline to column surface: 190mm
Maximum distance from spindle end face to workbench: 280mm
Maximum distance from spindle end to base: 430mm
Spindle taper: MT2/B16
Spindle speed range: 340-3720rpm
Number of spindle speed stages: 4th gear
Worktable size: 205 * 205mm
Base size: 290 * 400mm
Maximum effective height: 880mm
Voltage: 220v/380v
Net weight/gross weight: 36kg/42kg
