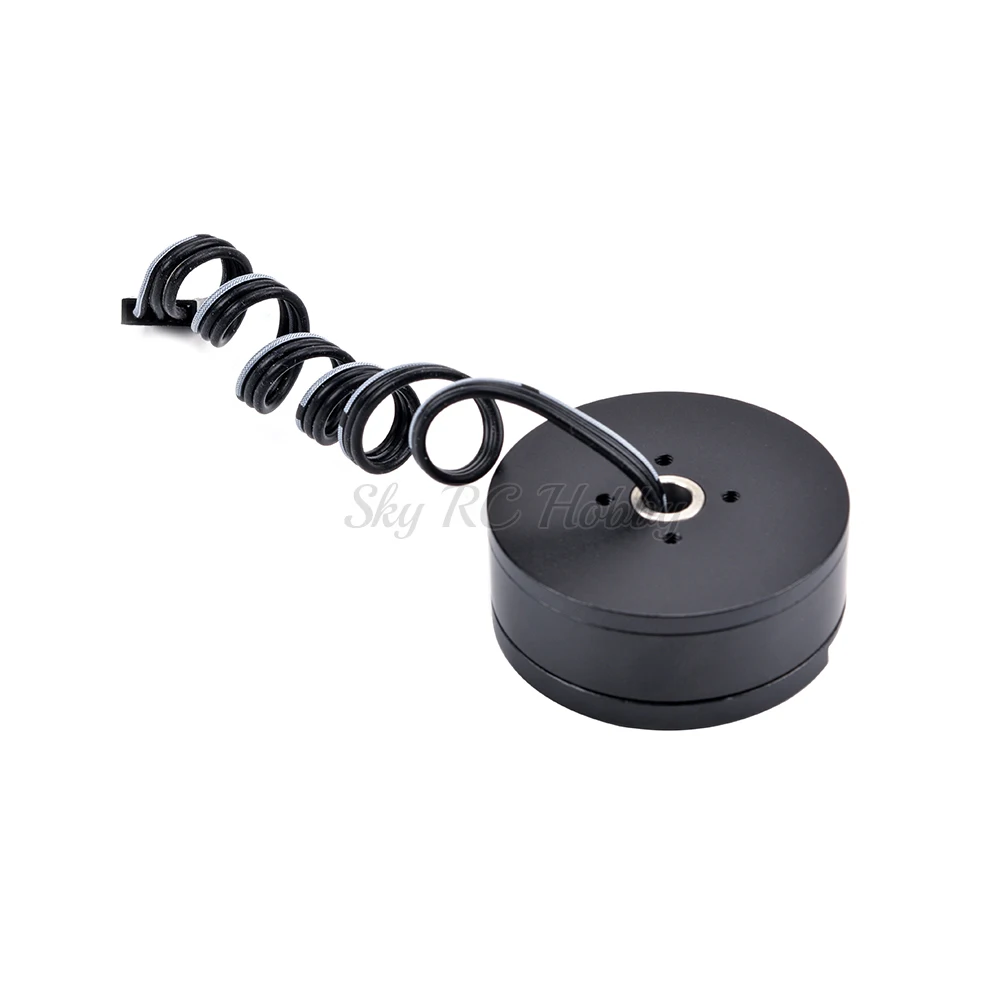

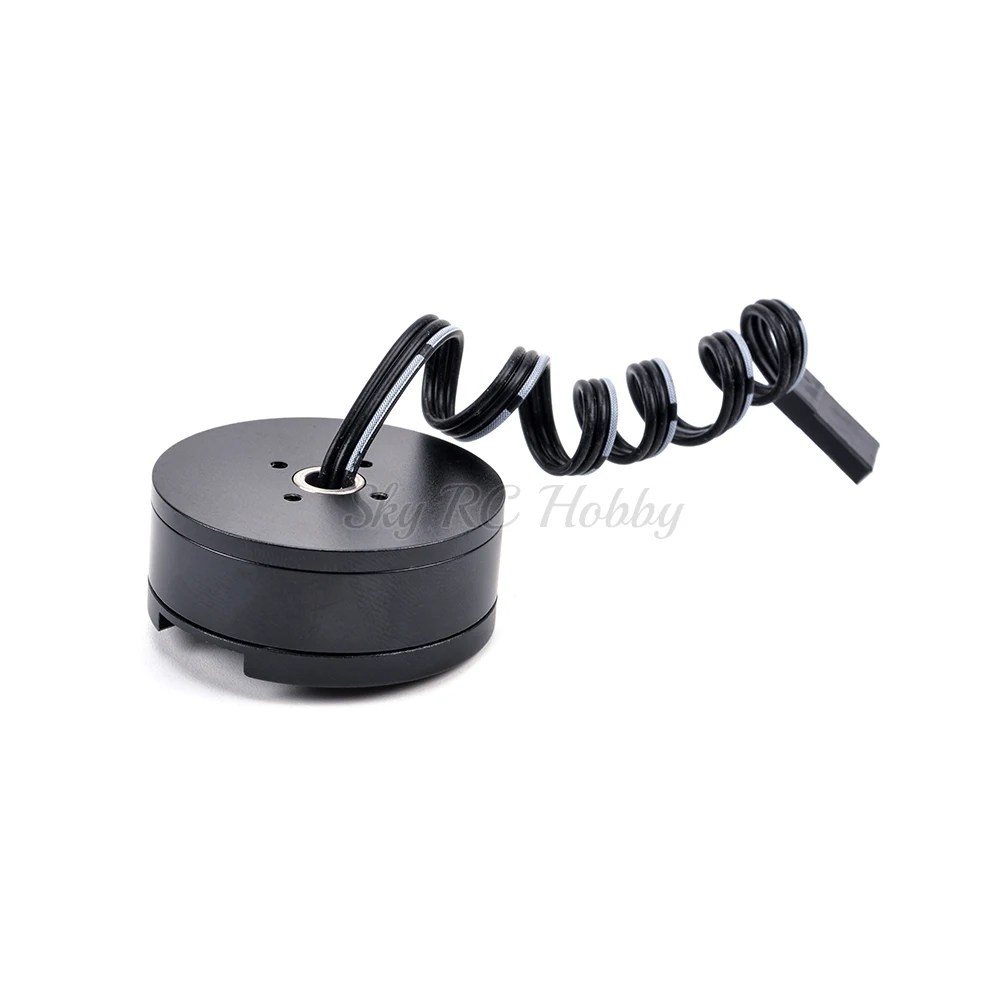

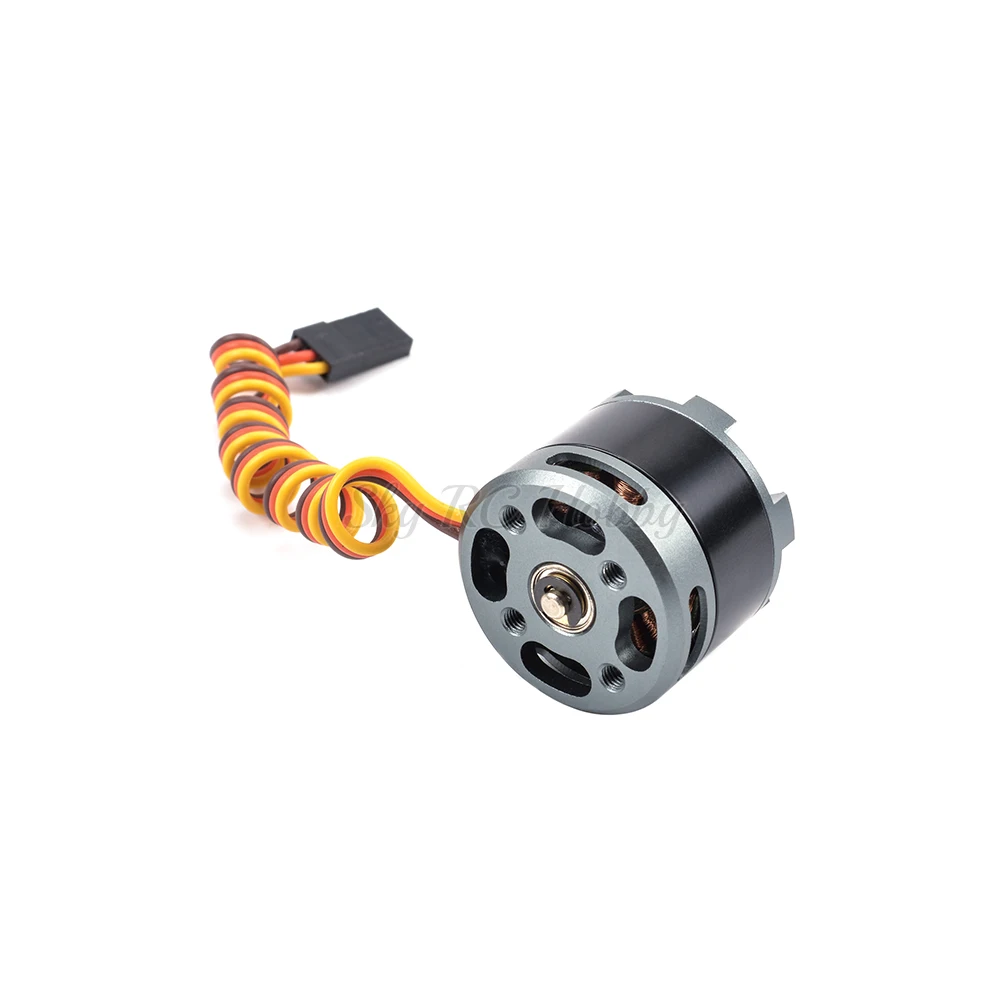

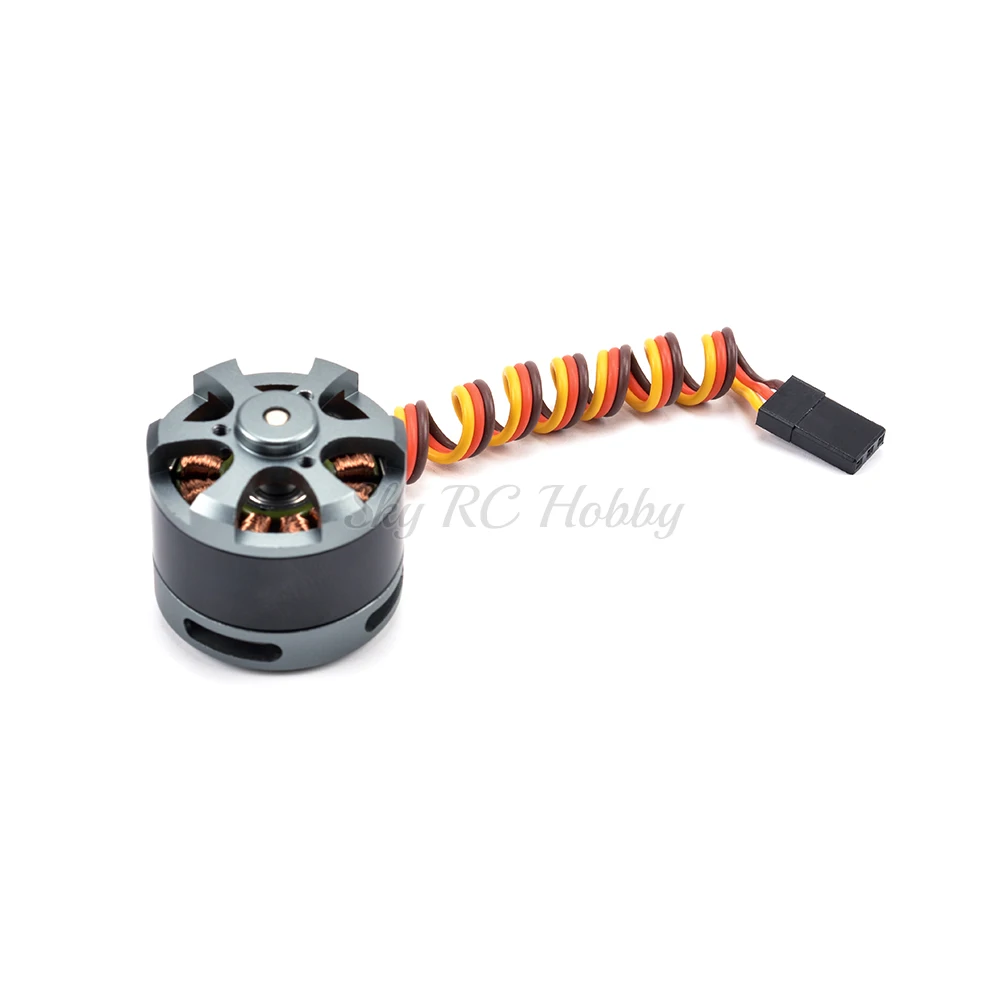

ZRE-DRONE 2208 80KV / 2204 260KV / 2804 140KV / 2805 140KV Brushless Gimbal Motor For 2 Axis / 3 Axis Gimbal Gopro CNC Digital Camera FPV

Price range: $19.26 through $34.17

1PCS 2204 260KV
1PCS 2204 260KV
1PCS 2208 80KV
1PCS 2208 80KV
1PCS 2804 140KV
1PCS 2804 140KV
1PCS 2804 140KV-365458
1PCS 2804 140KV-365458
1PCS 2805 140KV
1PCS 2805 140KV
2PCS 2204 260KV
2PCS 2204 260KV
2PCS 2208 80KV
2PCS 2208 80KV
2PCS 2804 140KV
2PCS 2804 140KV
2PCS 2804 140KV-200004890
2PCS 2804 140KV-200004890
2PCS 2805 140KV
2PCS 2805 140KV
Clear
Add to wishlist
Compare
Continue Shopping SKU: ZREDRN100024 Category:
  • Technical parameters: Value 5
  • Model Number: 2208 2204 2804 2805 Brushless Gimbal Motor
  • For Vehicle Type: Airplanes
  • Tool Supplies: Battery
  • Four-wheel Drive Attributes: Motors
  • Remote Control Peripherals/Devices: Remote Controller
  • Upgrade Parts/Accessories: Frame
  • RC Parts & Accs: Antennas
  • Material: Composite Material
  • Brand Name: Readytosky
  • Origin: Mainland China
  • Recommend Age: 12 y
  • Use: Vehicles & Remote Control Toys


2208 80KV Motor 39g 3mm shaft for 2-Axis Gimbal

Item name: GM2208-80
Weight: 39g
Shaft Diameter: 3mm
Motor diameter: 28mm
Load weight: 100-200g cameras like Gopro






2804 140kv Motor for 2 Axis gimbal:

Size: approximately 34.5×13.3 mm

Shaft hole : 4.5 mm

Weight: 40.8 ± 0.5 g

Cable length: 20cm

Color: silver / black

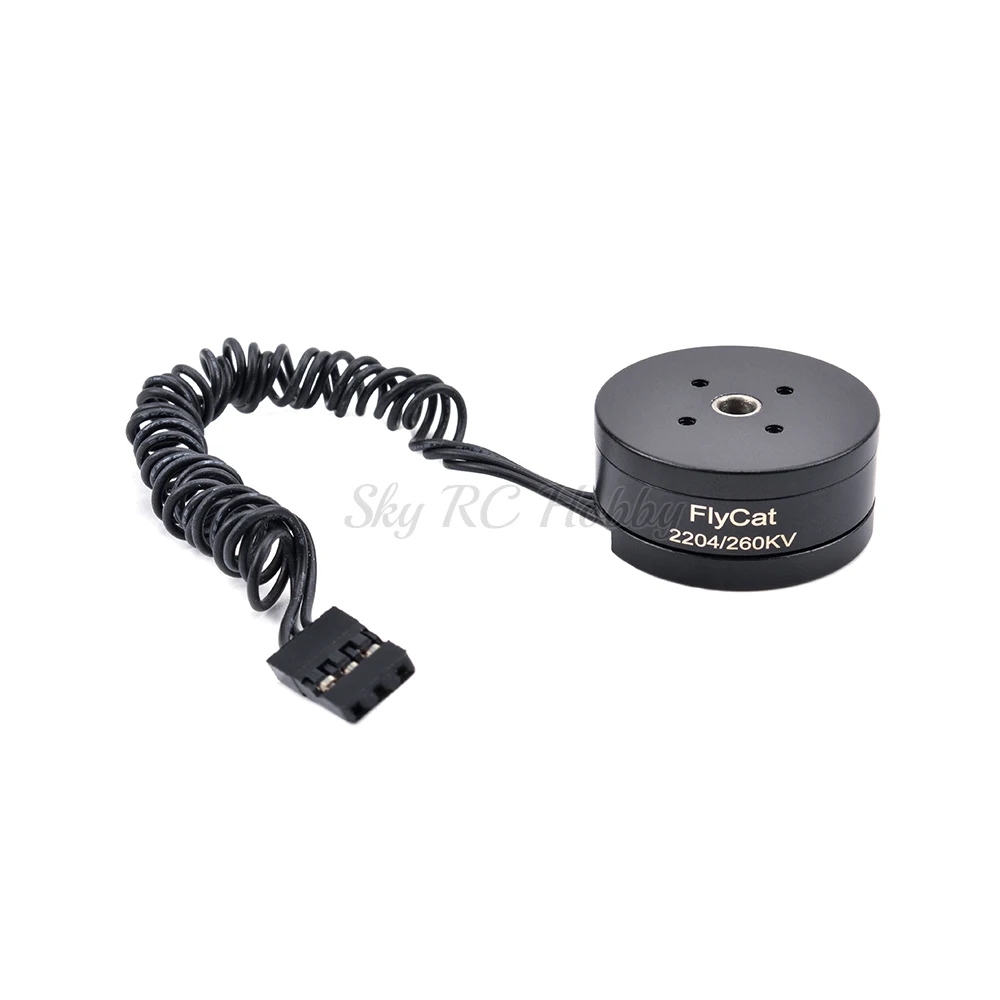

2204 260kv Motor for 3-Axis gimbal:

Size: approximately 27.85 * 13.1 mm

Shaft hole : 3.4 mm

Weight: 24±0.5 g

Cable length: 30 cm

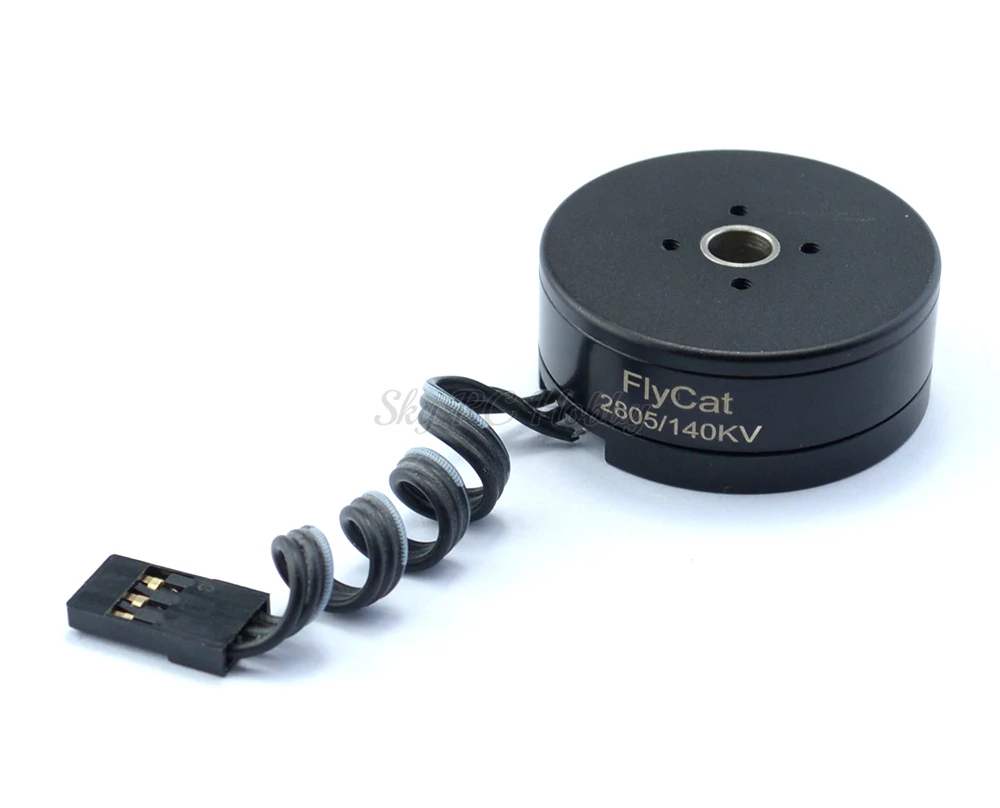

2805 140kv Motor for 3-Axis gimbal:

Size: approximately 34.5 * 14 mm

Shaft hole : 5.4mm

Weight: 41±0.5 g

Cable length:9.5cm

Model :2804 100T

Motor Diamension:34mm*hgt15mm

Stator Diameter:DIa 28mm*hgt 4mm

Copper Wire(OD):0.19mm

Configuration:12N14P

Base center pitch:16mm 19mm

Pre-wound: with 100 turns hollow shaft

Camera range(Torque):200g-400g

Test Voltage:11.1V

Max Voltage:14.8v

Test Current:0.0099A

Max Current:5A

Test Rotational Speed:1637 rpm

Max Rotational Speed:2180rpm
