- Model Number: Happymodel EX1102 Motor
- For Vehicle Type: Helicopters
- Tool Supplies: Assembly Category
- Four-wheel Drive Attributes: Assemblage
- Remote Control Peripherals/Devices: Motor
- Upgrade Parts/Accessories: Frame
- RC Parts & Accs: Motor Components
- Material: Composite Material
- Origin: Mainland China
- Recommend Age: 12 y
- Certification: NONE

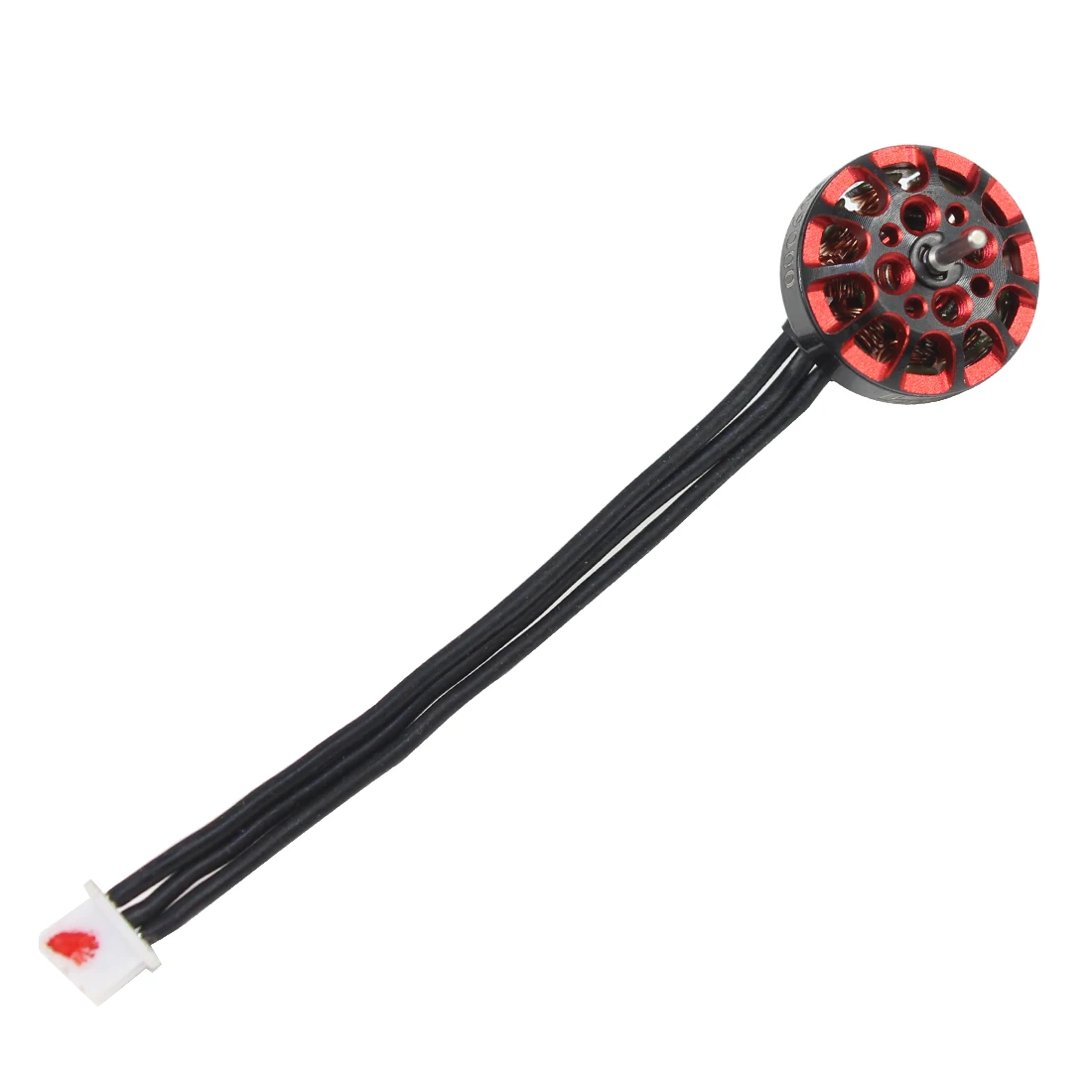

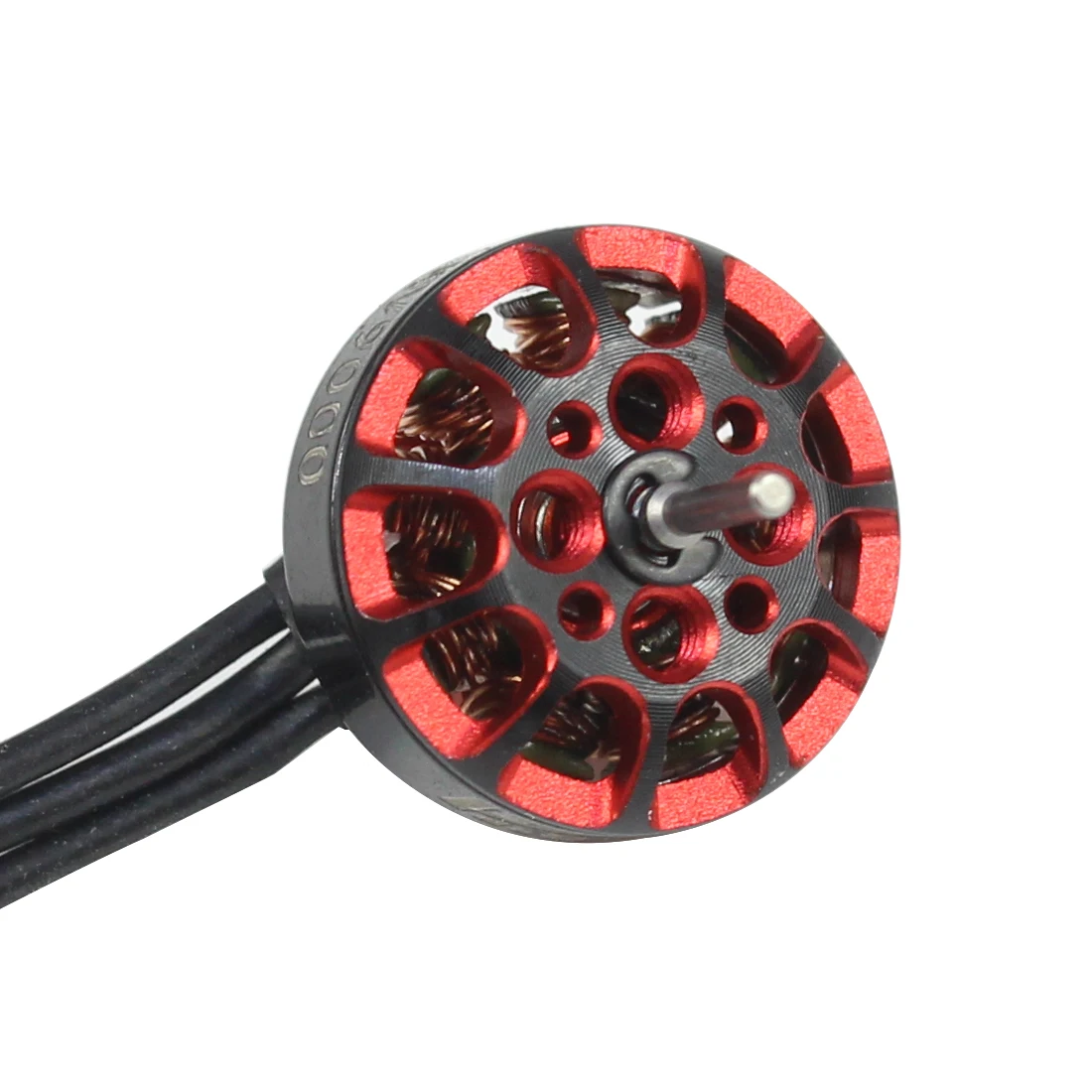

4PCS/Lot Happymodel EX1102 9000KV 10000KV 13500KV 2-3S Brushless Motor Original for Mobula7 HD RC Drone Spare Part DIY Accs
The motor black line with red dot= clockwise CW
The motor black line without red dot = counter-clockwise CCW
Mode: EX1102
KV options: 9000KV 10000KV 13500KV
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:2mm
Shaft Diameter:Φ1mm or Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*16mm
Weight(g):2.8g
No.of Cells(Lipo):2S-3S
The lightest 1102 brushless motor all over the world
Mobula7 HD original brushless motors
Dual bearing design and more balance
40mm – 66mm propellers compatible
Could use for 2s-3s 75mm-85mm whoops and best for 66mm ductless frame
Quantity:4PCS CW or 4PCS CCW motor / 2PCS CW+2PCS CCW(optional)
