- Zone Number: 100
- Alarm Type: The Alarm,SMS,PSTN,Apps Control
- Output Number: 100
- Model Number: G13
- Kit Configuration: Door/Window Sensor
- Size: 14*14*2.1cm
- Power: 5V
- Connection Type: Wireless
- Arming Type: RFID Card
- Video Interface: No
- Display: No
- Password Keyboard: No
- Origin: Mainland China
- Smart home platform: Alexa,Tuya,Google Assistant
- Certification: CE
- Brand Name: CHANMAKERS
- Number of RFID cards that can be learned: 10
- APP: Tuya
- Intelligent voice control: Support Amazon Alexa, Google Assistant, IFTTT, etc.
- Wireless Frequency: 433mhz
- Wifi signal: 2.4G Wifi
- Type: WIFI GSM Alarm System Kit
- SIM card signal: 2G signal SIM card
- Arm/disarm: App Controlled Remote Arm/Disarm For IOS&Android
- Voice assistant: Work with Google Assistant&Amazon Aleax
- Frequency: Compatible with all 433mhz accessories

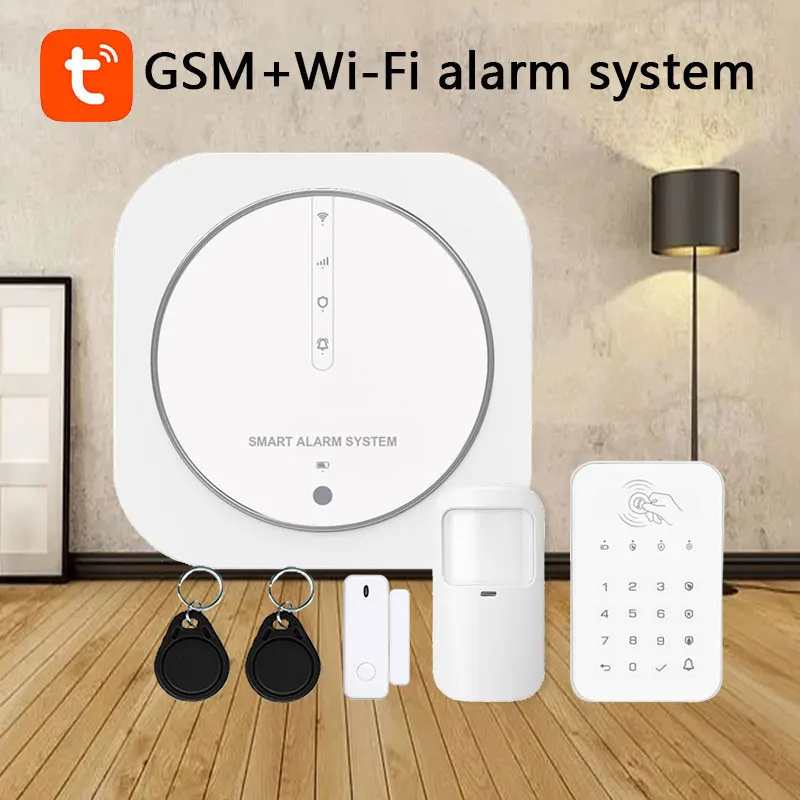

WiFi+GSM(2G) Dual-Network Wireless 433MHz Home Security Alarm System, Tuya Smart Life APP Remote Control, Works with Alexa & Google Assistant

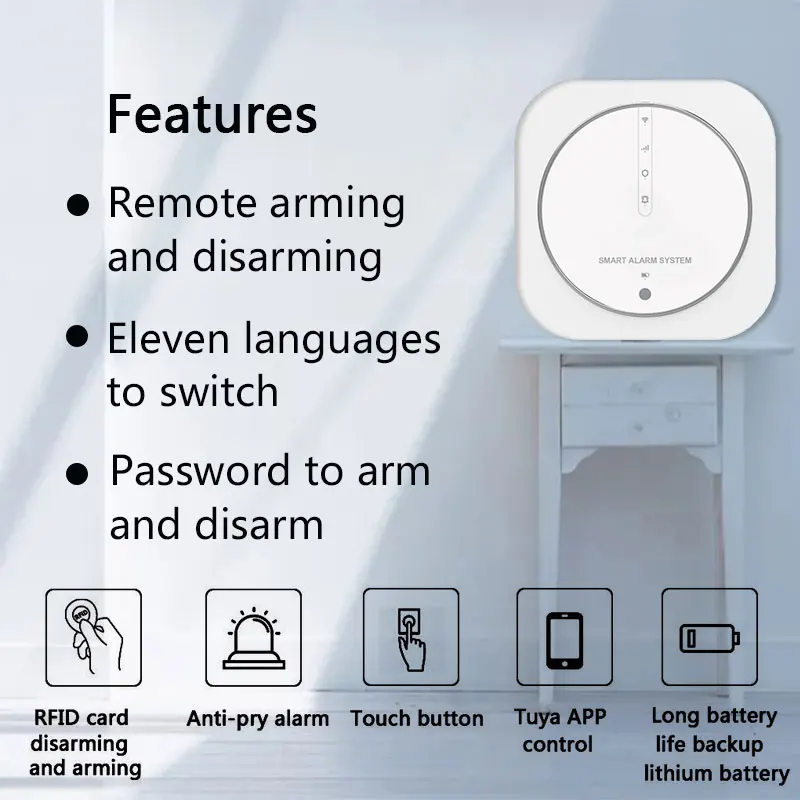

GSM+WiFI Alarm System:
. RFID card arming and disarming
. Anti-pry alarm
. Touch button
. Tuya APP control
. Long battery life, backup rechargeable lithium battery

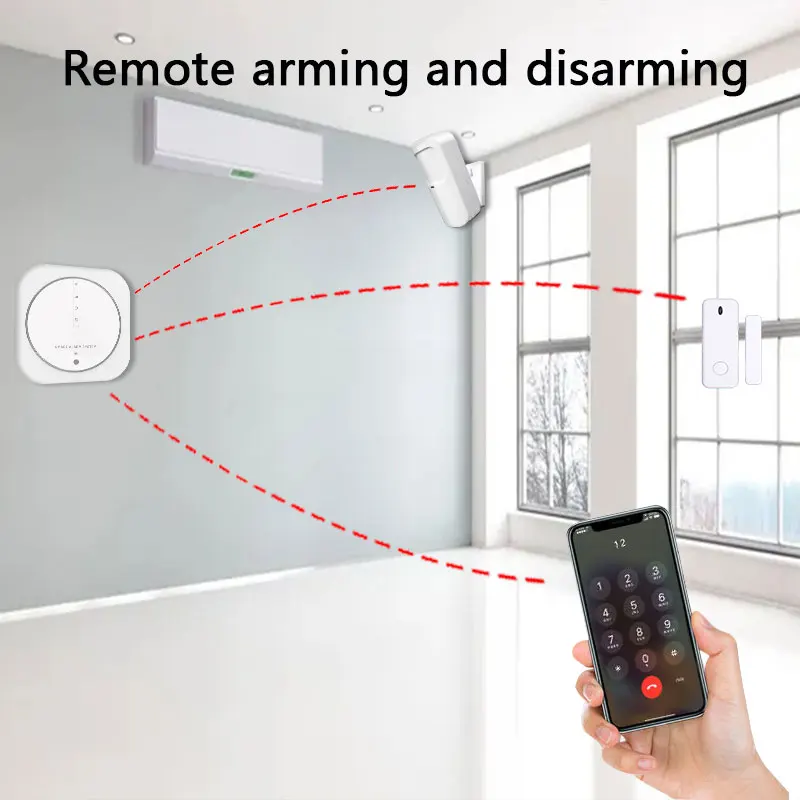

Remote arming and disarming

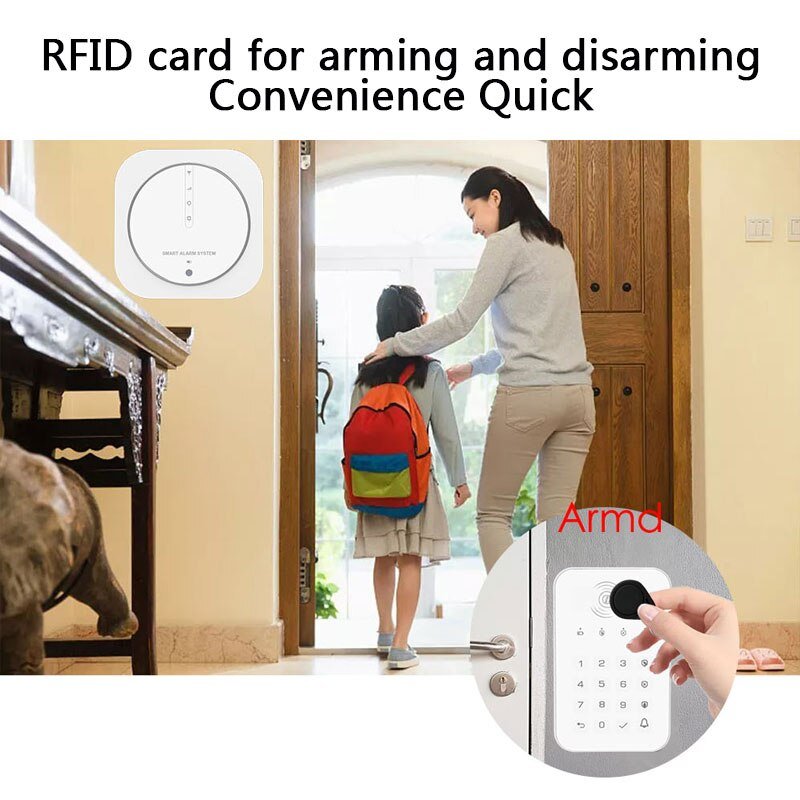

RFID Card Arming and Disarming

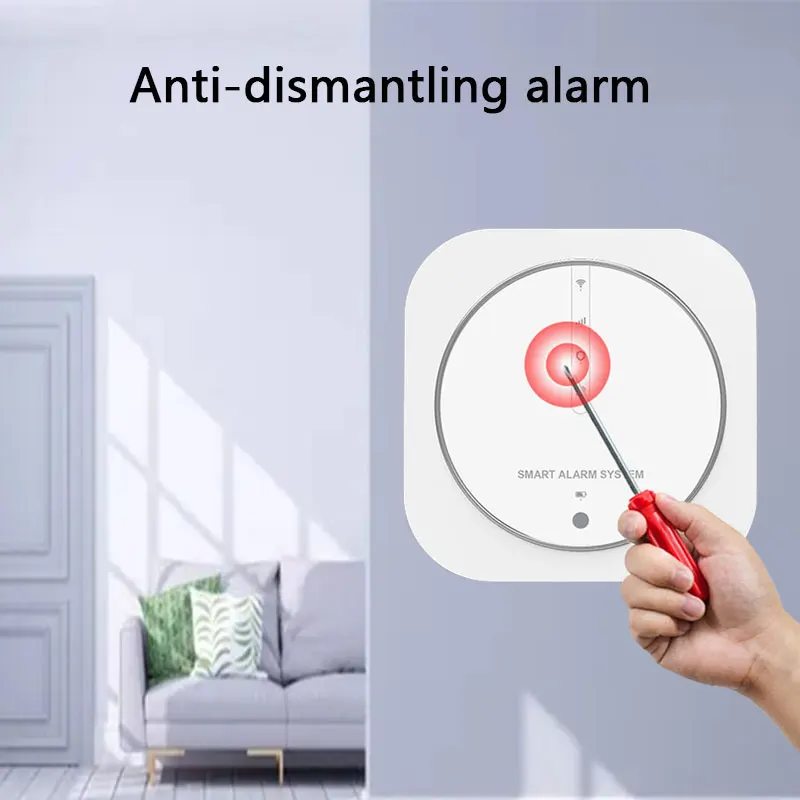

Anti-dismantling alarm
11-Languages Supported
Chinese, English, German, Russian, Spanish, Polish, Italian, French, Portuguese, Greek, Romanian

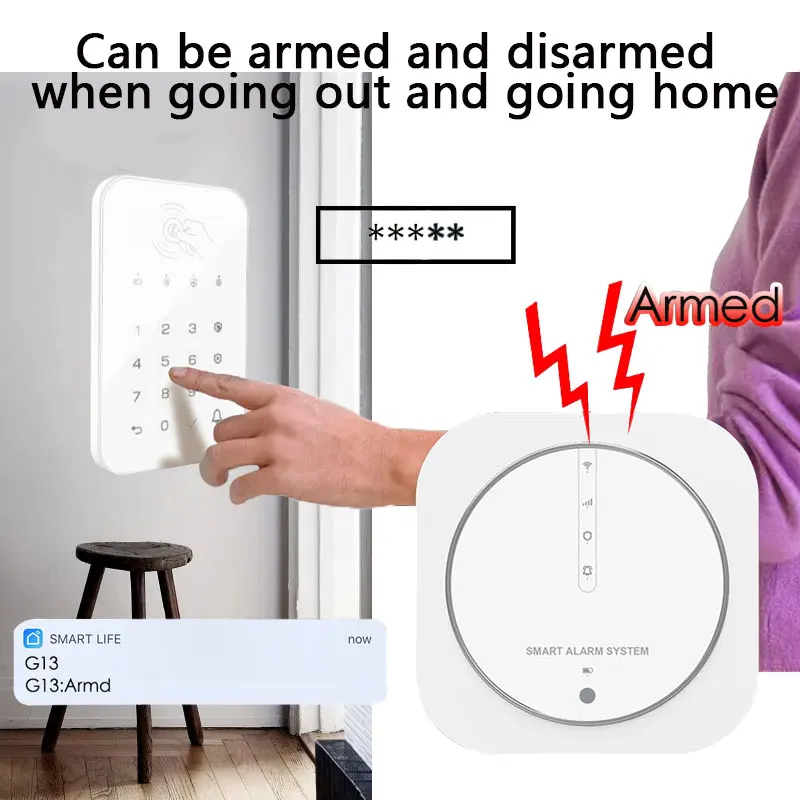

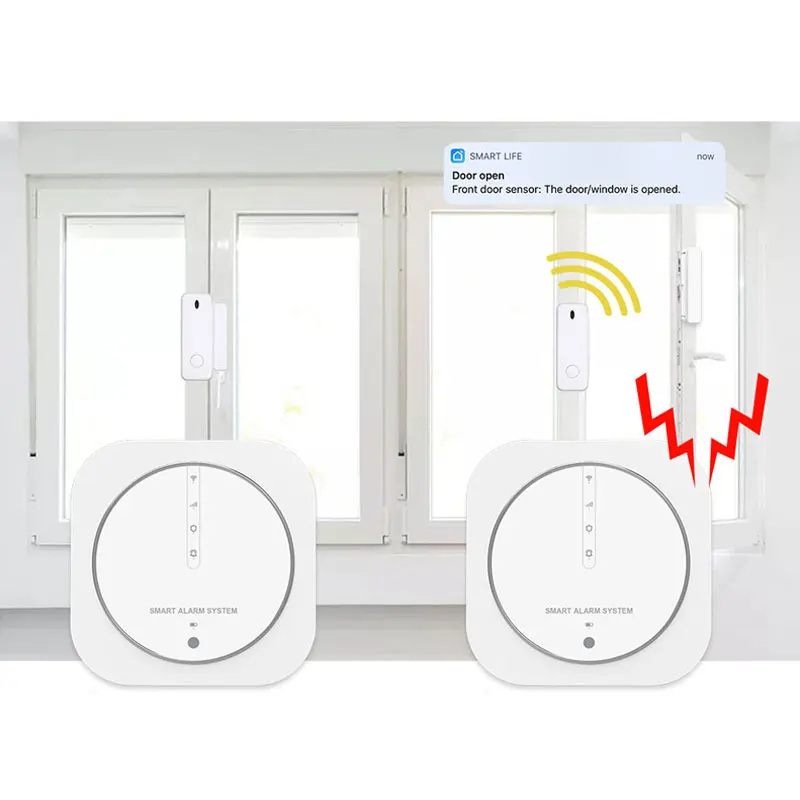

Can be armed and disarmed when going out or going home

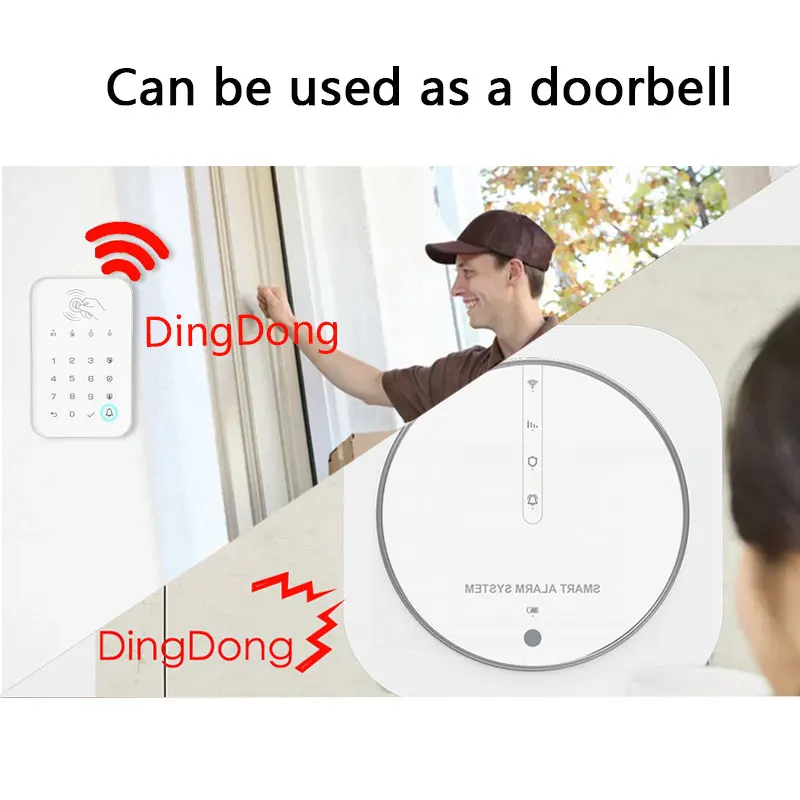

Can be used as a doorbell
There is a doorbell button on the keyboard lock, once you press the doorbell button, the alarm host will sound a ding-dong sound
Tuya Smart Life App Control

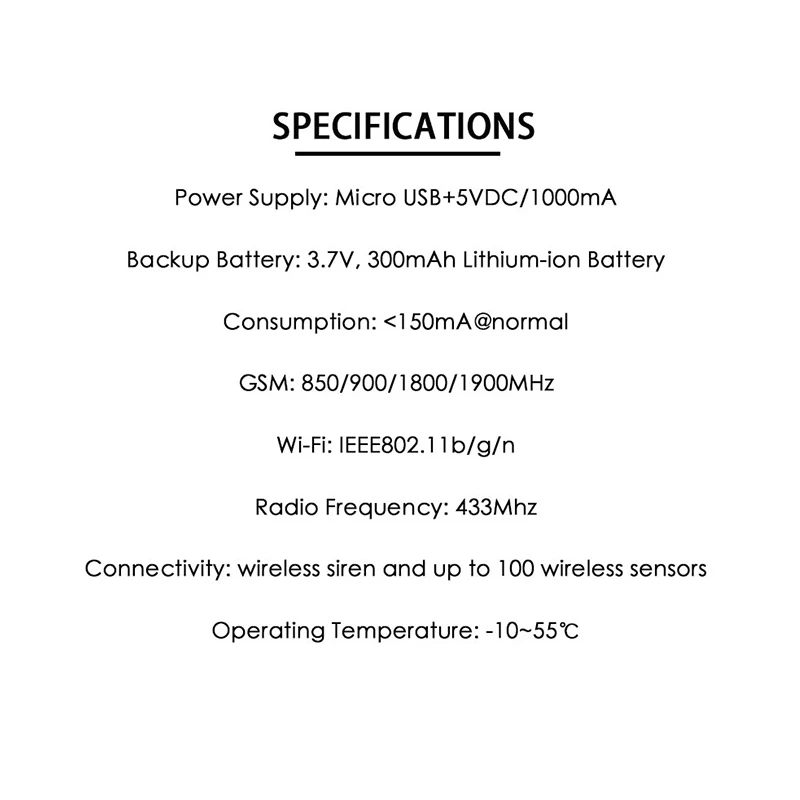

Specifications
Notice :
1. P10 Infrared detector, Smoke sensor, Water leak sensor,Carbon monoxide detector (Batteries are not included because of aviation restrictions).
2. Alexa is only available in certain regions: US, Canada, India and Australia.if you require this function,please check if it is operating in your region.
If you need other accessories, you can contact us and we will provide you with the link

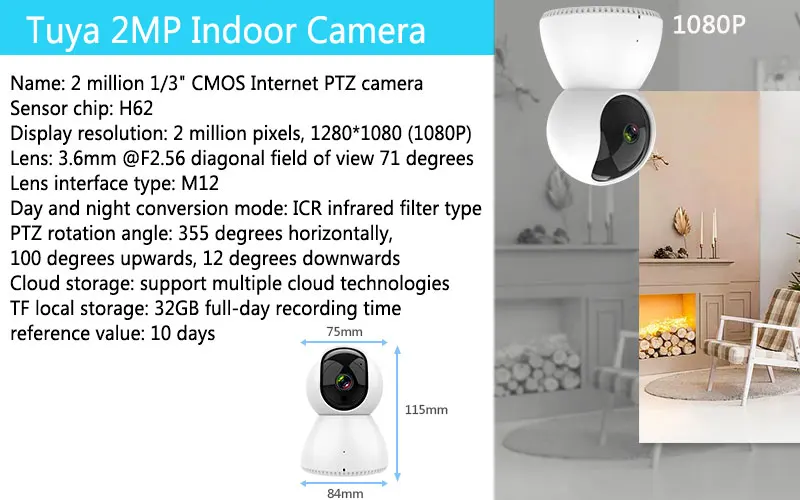

Tuya 2MP Indoor Camera
Name: 2 million 1/3" CMOS Internet PTZ camera
Sensor chip: H62
Display resolution: 2 million pixels, 1280*1080 (1080P)
Lens: 3.6mm @F2.56 diagonal field of view 71 degrees
Lens interface type: M12
Day and night conversion mode: ICR infrared filter type
PTZ rotation angle: 355 degrees horizontally,
100 degrees upwards, 12 degrees downwards
Cloud storage: support multiple cloud technologies
TF local storage: 32GB full-day recording time
reference value: 10 days

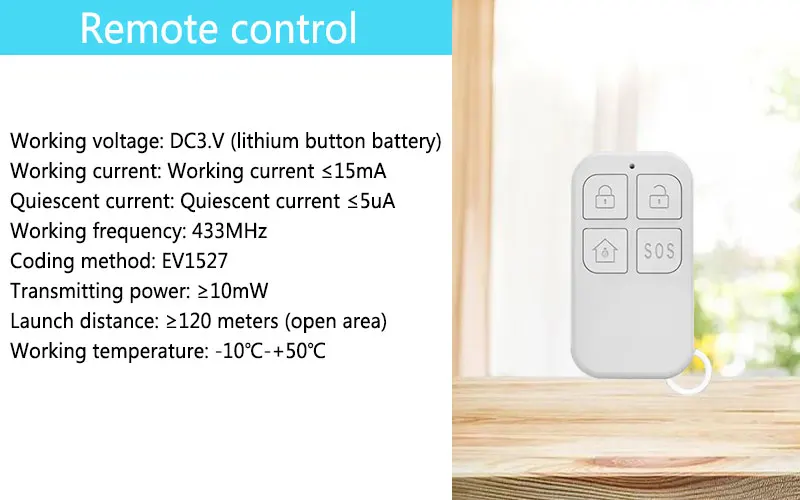

Remote control
Working voltage : DC3 V ( lithium button battery )
Working current : Working current ≤15MA
Quiescent current : Quiescent current ≤5ua
Working frequency : 433MHZ
Coding method : EV1527
Transmitting power : ≥10mw
Launch distance : ≥120 meters ( open area)
Working temperature : -10 % C- + 50 C

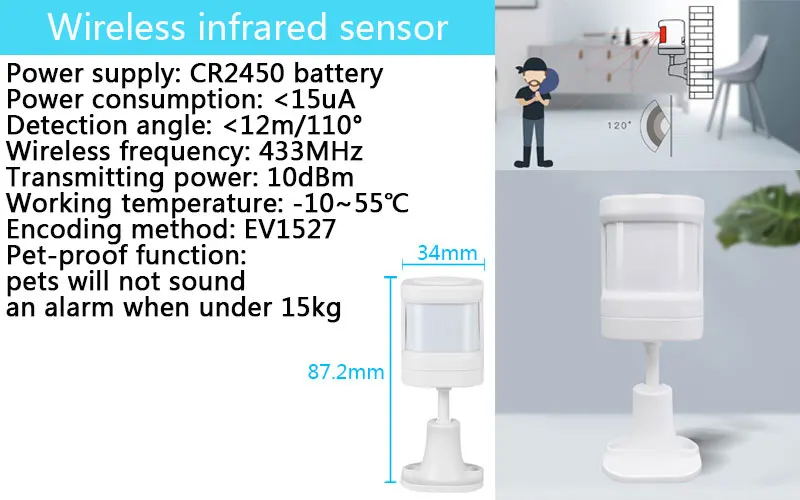

Wireless infrared sensor
Power supply : CR2450 battery
Power consumption : < 15UA
Detection angle : < 12m / 110°
Wireless frequency : 433 MHZ
ransmitting power : 10dbm
Working temperature : -10~55°C
Encoding method : EV1527
Pet-proof function :pets will not sound an alarm when under 15 kg

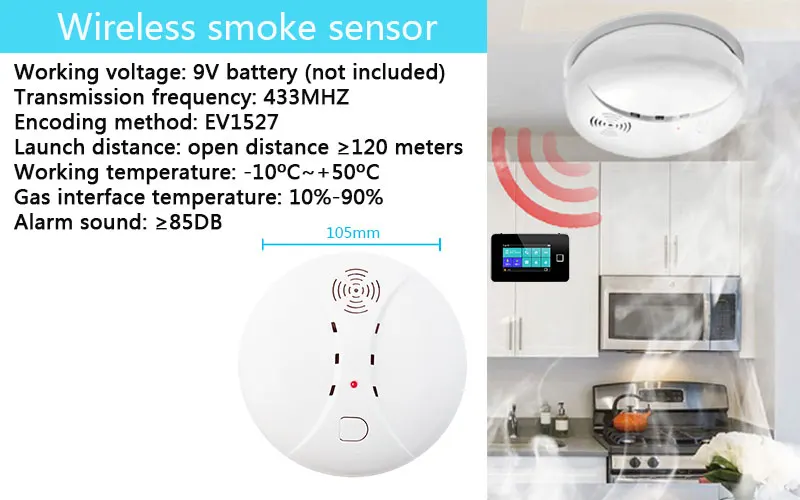

Wireless smoke sensor
Working voltage : 9V battery ( not included)
Transmission frequency : 433 MHZ
Encoding method : EV1527
Launch distance : open distance ≥120 meters
Working temperature : -10°C- + 50 °C
Gas interface temperature : 10%-90%
Alarm sound : ≥ 85dB
P10 Infrared Sensor
Working voltage : 4 . 5V( Power by 3pcs 1.5V AA batteries)
Static current : < 15ua
Detection angle 110°
Coding method : EV1527
Radio frequency : 433 MHZ
Launch distance : 120m ( open distance)
Operating temperature : -10 + 55°C
Installation height : 1.7-2 . 5m
( recommended installation height : 2 . 2m)

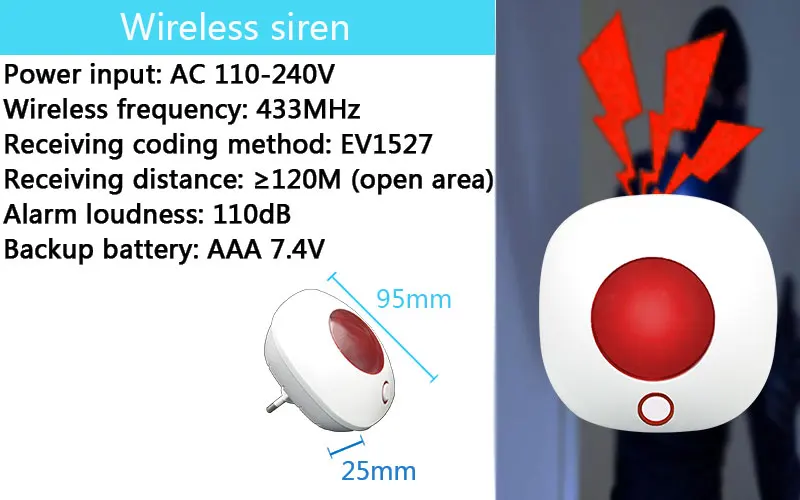

Wireless siren
Power input : AC 110-240V
Wireless frequency : 433 MHZ
Receiving coding method : EV1527
Receiving distance : ≥120M ( open area)
Alarm loudness : 110dbB
Backup battery : AAA 7.4V
Door sensor
Power supply : CR2032 button battery
Power consumption : < 8UA @ standby
Sensing distance : 15mm
Transmitting power : 10dbm
Working temperature : -10-55°C
Transmission frequency : 433MHZ
Coding method : EV1527
Transmission distance : ≥120M

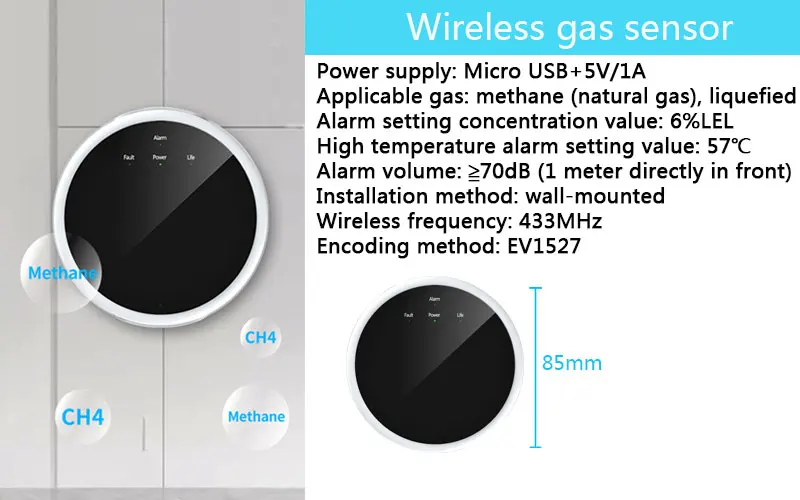

Wireless gas sensor
Power supply : Micro USB + 5V / 1A
Applicable gas : methane ( natural gas ) , liquefied
Alarm setting concentration value : 6 % LEL
High temperature alarm setting value : 57°C
Alarm volume : ≥70db ( 1 meter directly in front)
Installation method : wall-mounted
Wireless frequency : 433MHZ
Encoding method : EV1527

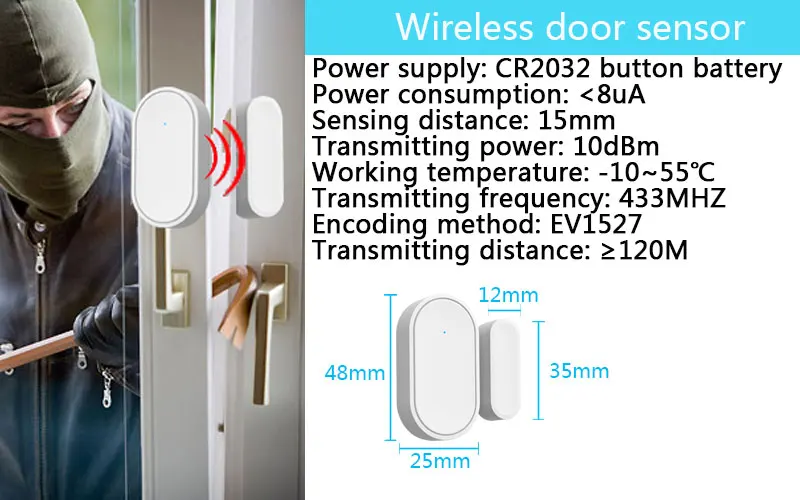

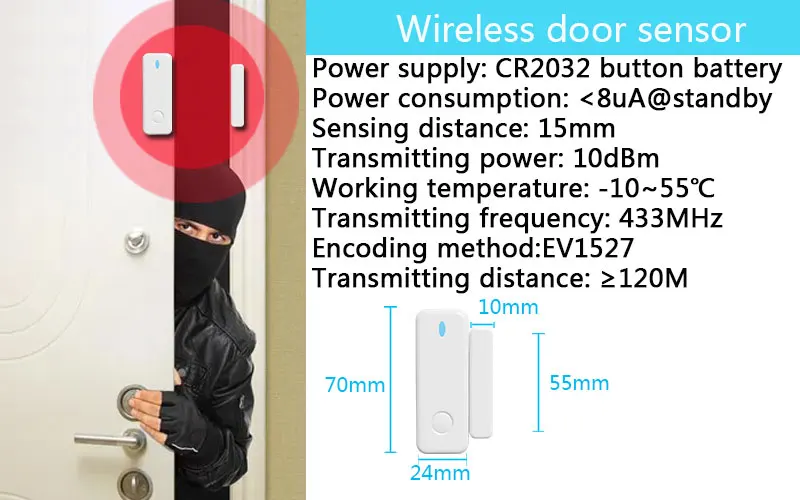

Wireless door sensor
Power supply : CR2032 button battery
Power consumption : < 8UA
Sensing distance : 15mm
Transmitting power : 10dbm
Working temperature : -10-55°C
Transmitting frequency : 433 MHZ
Encoding method : EV1527
Transmitting distance : ≥120M

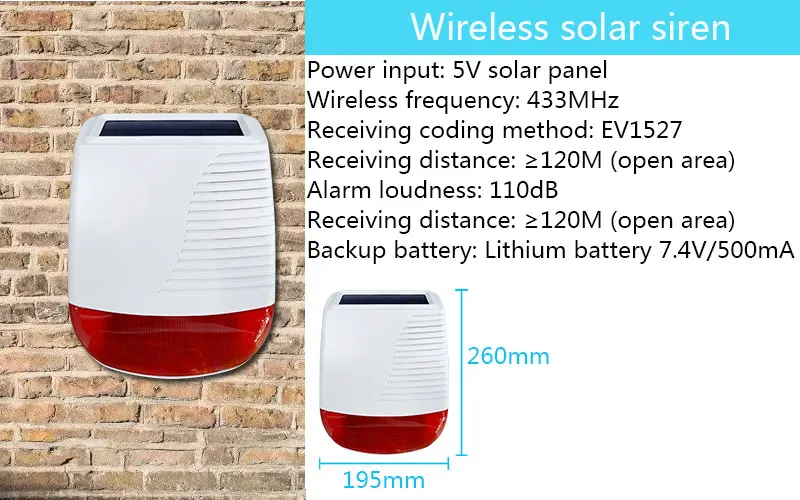

Wireless solar siren
Power input : 5V solar panel
Wireless freguency : 433MHZ
Receiving coding method : EV1527
Receiving distance : ≥120M ( open area )
Alarm loudness : 110db
Receiving distance : ≥120M ( open area)
Backup battery : Lithium battery 7 . 4V / 500MA

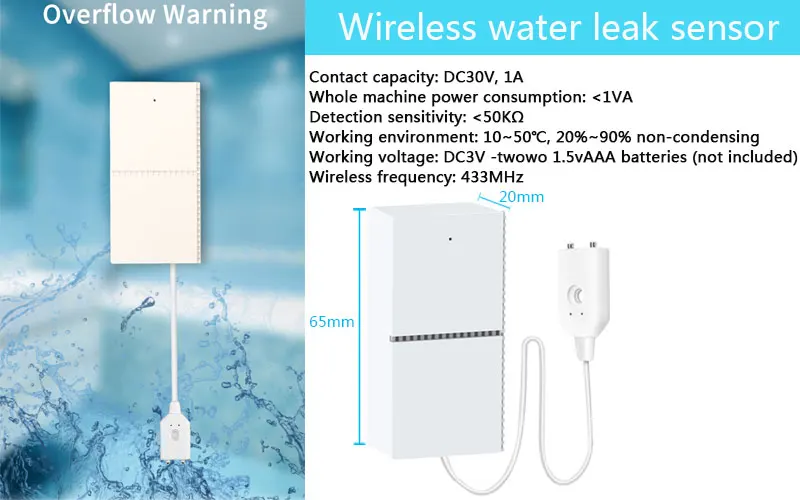

Wireless water leak sensor
Contact capacity : DC30V , 1A
Whole machine power consumption : < 1VA
Detection sensitivity : < 50kΩ
Working environment : 10-50°C , 20%-90% non-condensing
Working voltage : DC3v-twowo 1 5VAAA batteries
( not included )
Wireless frequency : 433 MHZ
