- Model Number: wireless infrared detector
- Origin: Mainland China
ASIC Adopted
Auto temperature compensation
send alarm signal by RF
No wiring,Install coveniently
Low battery indication design adopted
Operation Voltage: 9V 6F22 battery (Power by battery not included)
Static current: less 25uA
Alarm current: less 15mA
Detecting distance: 12M
Detecting angle: 110 degree
Code form: 1527 type
Wireless frequence: 433MHZ
Wireless distance: 100M(Open area)
Low battery indicator: Yellow LED
Alarm indicator:Red LED
Range of coverage: 11 distance ,8 middle,5 Vicinities
Sensor: Dual infrared sensor
Operation temperature: -10 Celsius — 50 Celsius
Enviroment humidity: less 95%(no congelation)
Anti RF interference: 10MHZ-1GMHZ 20v/m

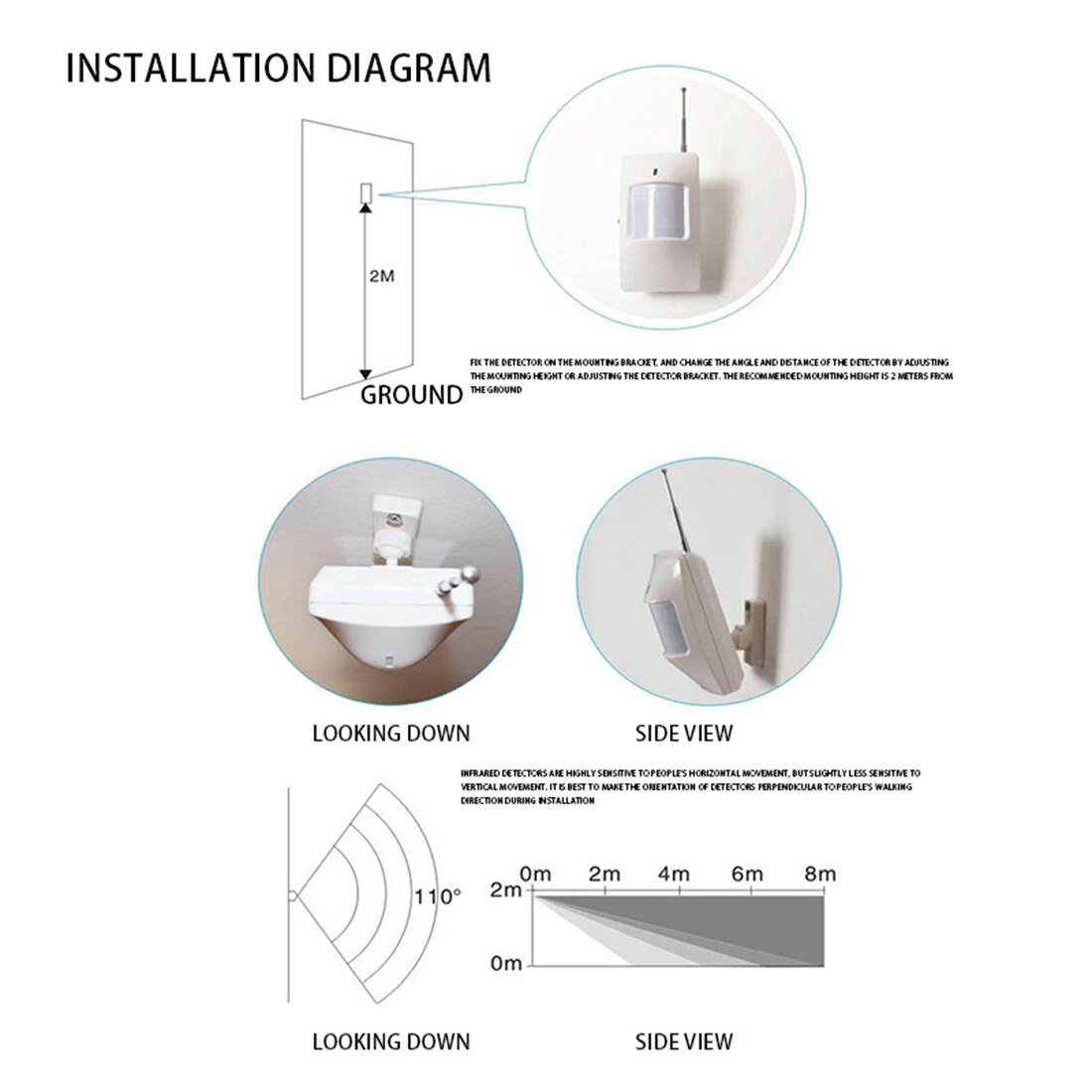

Installation mode: or hanged in Installation height: 1.7-2.5m(2.2m is proposed)
Outline size: 59 x 45 x107mm (L x W x H)
Colour:White
Material:ABS Package Contents:
1 x Wireless PIR Motion sensor (no 9V battery) Only the above package content, other are not included.
Note: Light and different displays may cause the color of the item in the a little different from the real thing. The measurement allowed error is +/- 1-3cm.
