ZRE-MSNCR Tuya Wifi/Zigbee 3IN1 Human Presence Sensor Millimeter Wave Radar PIR Detection Luminosity Distance Detector For Smart Home

Main Features:

1.Updated 24G radar for more accurate detection.

Compared to 5.8G radar, 24G radar has a shorter detection distance (which basically meets the distance requirements of daily household use). However, 24G radar has higher range detection accuracy (± 10cm); The delay time is relatively accurate; Higher recognition accuracy; Higher unmanned preprocessing speed; And the unique FMCW variable frequency modulation wave fast algorithm.

2.Functional ZigBee Smart Human Presence Sensor

Featured as human presence,human static,human micro motion and human movement motion detection to detect the presence or absence of people in the area,even to detect the static state such as personnel sleeping accurately with mmWave Radar Detection featured.

3. Perceived Light Intensity for Smart&Scene Linkage

Illuminance monitor in Tuya Smart APP enables its smart feature as smart scene linkage with other smart devices,especially your house lights to ON/OFF automatically as the brightness changes;Besides,you can intelligently linkage the sensor to other smart home devices for home automation.

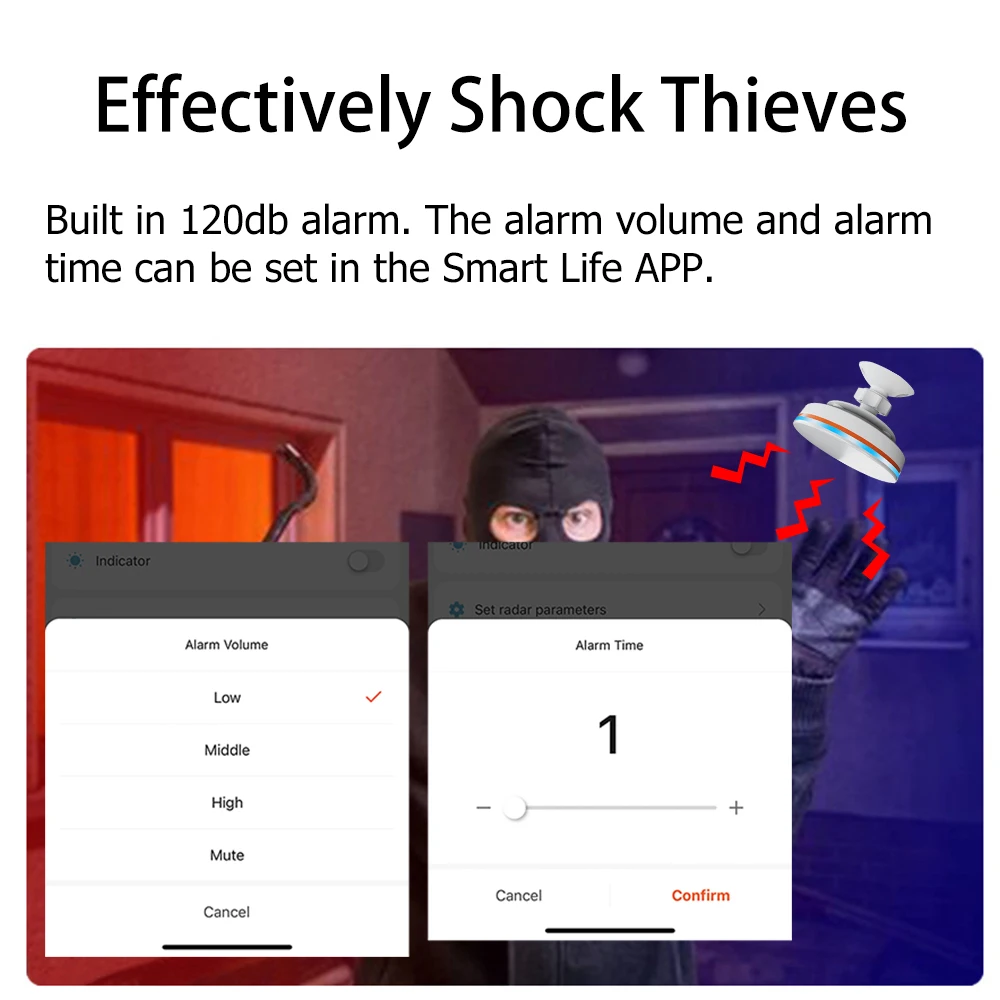

4.Safeguard your family safely. Built in 120db alarm.

There are three modes available on the APP homepage: Armed/Disarmed/Alarming. You can also set the alarm duration and volume in the APP. In Armed mode, the sensor detects the presence of a person and emits an alarm sound. If you don’t want to hear the alarm sound, you can switch to Disarmed mode

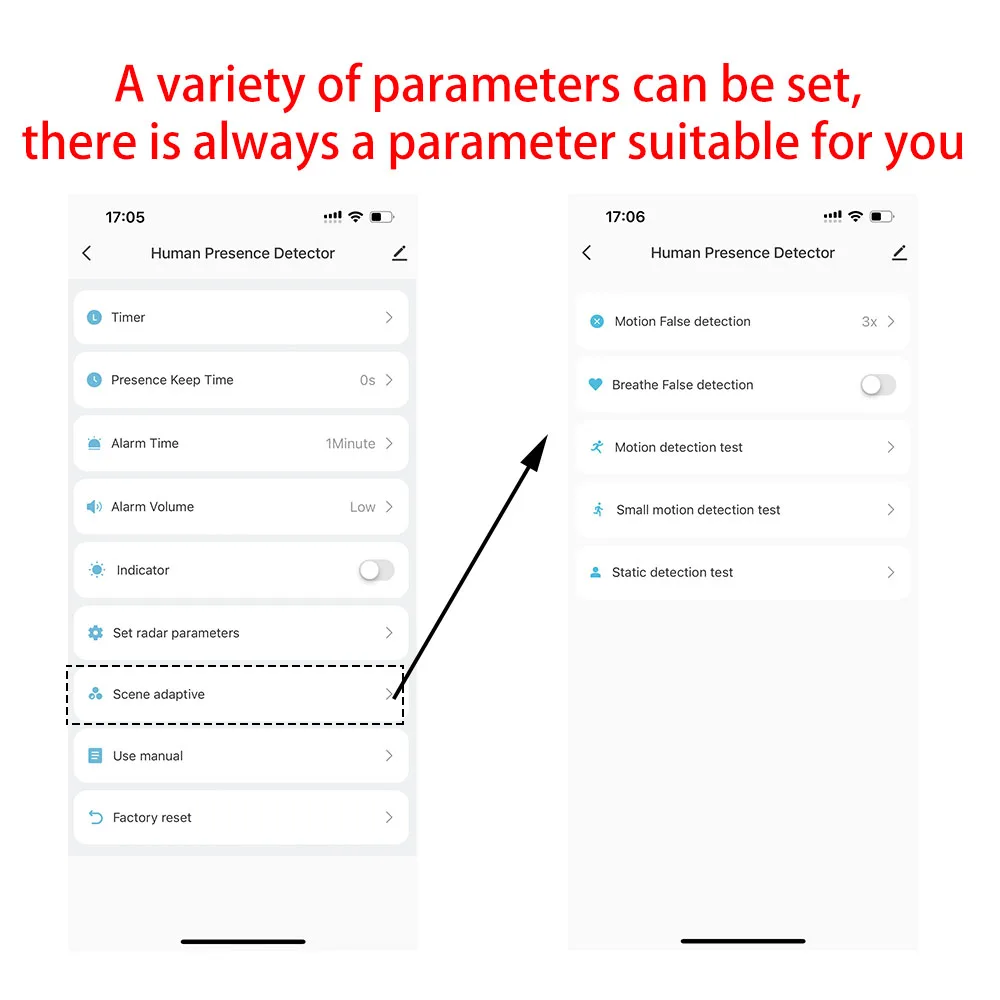

5. Advanced New Design with Multiple Settings

In addition to setting alarm related parameters in the APP. It can also support setting the following parameters: Presence Keep Time/Indicator Status/Radar Parameters（Sensitivity and distance）/Motion False Detection.

6. ZigBee Hub as Control Center

Tuya ZigBee gateway is required for this ZigBee human presence sensor,performing as the center bridge for all Tuya ZigBee smart devices with extremely stable signal and a really good necessity for whole-house intelligence.(note:Tuya ZigBee hub is highly recommended for its wider compatibility than other hubs)

Specifications:

Network: ZigBee / Wifi.

Working Frequency:24GHz

Input: USB 5V

Siren Alarm Volume: Max 120db

Working temperature: -10℃~+55℃

Indicator Light:Red + Blue Indicator Light

Detection Angle:110°

Detection Distance: 6m/19.69ft

Illumination Value: 0~2000lux

Product Size: Φ85mm×27mm/Φ3.45inch×1.06inch

Package list:

Human presence sensor*1

User manual*1

2m USB Cable*1

Mounting screw packing

Reset needle*1

Various Detection Functions

1. Fretting Detection: It can detect small movements such as tilting the head, waving, raising the hand, flicking the body, playing with the mobile phone, turning over the book, etc.
2. Presence Detection:It can detect the human body in the stationary state.
3.Motion Detection: It can detect walking, trotting, fast running, circling, jumping and other movements.
4.Breathing Detection: Sensors can detect the breathing of people within a certain range to determine the presence of people in the detection area. For example, while sleeping or reading.
