- Model Number: ZC-S002W
- Brand Name: wofea
- Origin: Mainland China
- Certification: NONE
- Smart home platform: NONE
- Color: white
- Power: DC9V-16V
- current comsuption: 18mA (DC12V)
- Max detecte distance: 10m
- detecte angle: 110 degree
- Alarm output: NO , NC
- temper switch: Support
- Alarm indicator: Red LED
Detector Wired PIR Sensor Wired Wide angle PIR Detector Passive Infrared Motion
Wired PIR feature:
Fireproof ABS housing
Automatic temperature compensation
SMT adopted, anti-RFI & anti-EMI
Pulse count optional
Alarm output N.C./ N.O. optional
Wired PIR detector data:
Operating voltage: DC9- 16V
Consumption current: less than 18mA(DC12V)
Operating temperature: -10 to +50degree Celsius
Installation mode: wall mounted
Installation height: about 2.2m
Detecting distance: 12m Detecting
angle: 110 degrees
Alarm output: N.O./ N.C. optional
Anti-dismantle switch: N.C.
Wired ports
Noted: This wired PIR should be power by DC9v or DC 12V , The power supply not included ,
How to connect with alarm
Â

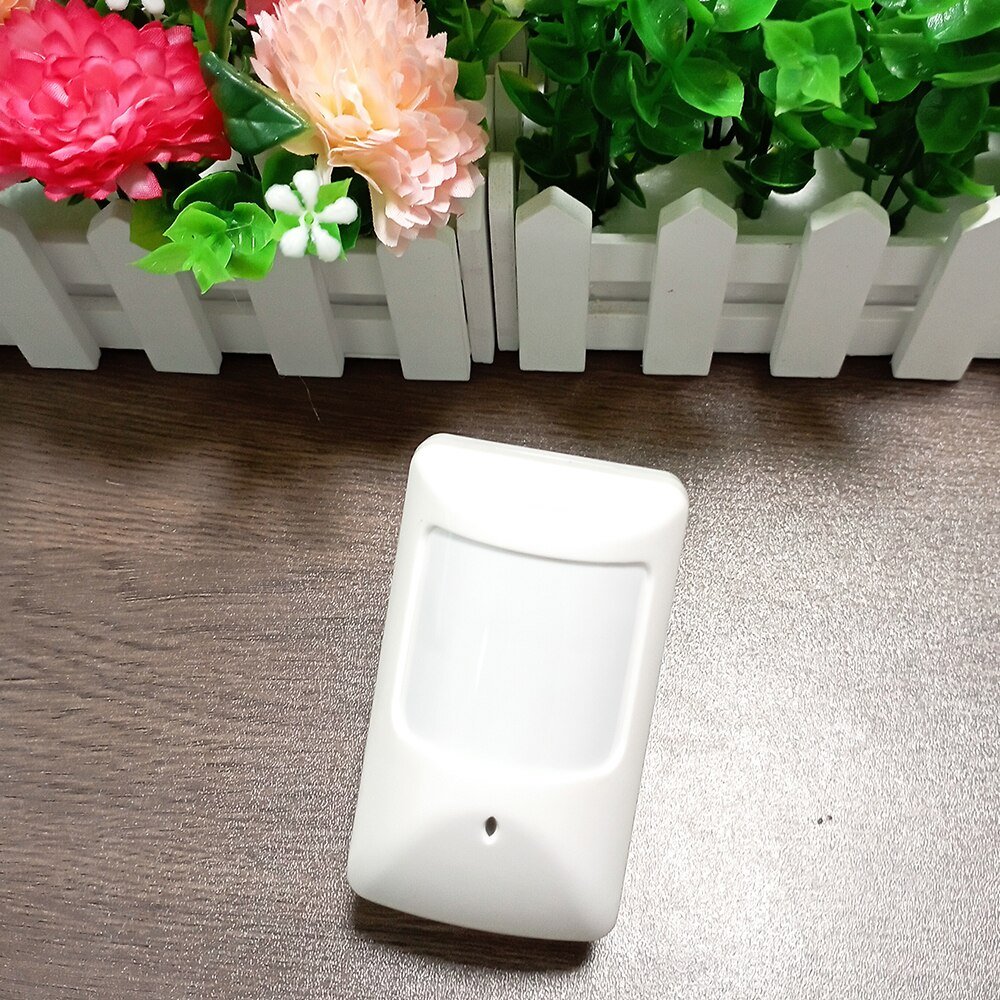

Photo shoot
