- Model Number: ZC-S002W
- Brand Name: wofea
- Origin: Mainland China
- Certification: NONE
- Smart home platform: NONE
- Color: white
- Alarm output: NC and NO
- Detect Angle: Horizontal: 110degree; vertical: 60 degree
- Place of Origin: Guangdong, China (Mainland)
- Working Voltage: 12v
Detector Wired PIR Sensor Wired Wide angle PIR Detector Passive Infrared Motion
Wired PIR feature:
Fireproof ABS housing
Automatic temperature compensation
SMT adopted, anti-RFI & anti-EMI
Pulse count optional
Alarm output N.C./ N.O. optional
Wired PIR detector data:
Operating voltage: DC 12V
Consumption current: less than 18mA(DC12V)
Operating temperature: -10 to +50degree Celsius
Installation mode: wall mounted
Installation height: about 2.2m
Detecting distance: 12m Detecting
angle: 110 degrees
Alarm output: N.O./ N.C. optional
Anti-dismantle switch: N.C.
Dimension: 89 x 52.5 x 38.5mm
Wired ports
Noted: This wired PIR should be power by DC12V , The power supply not included
How to connect with alarm

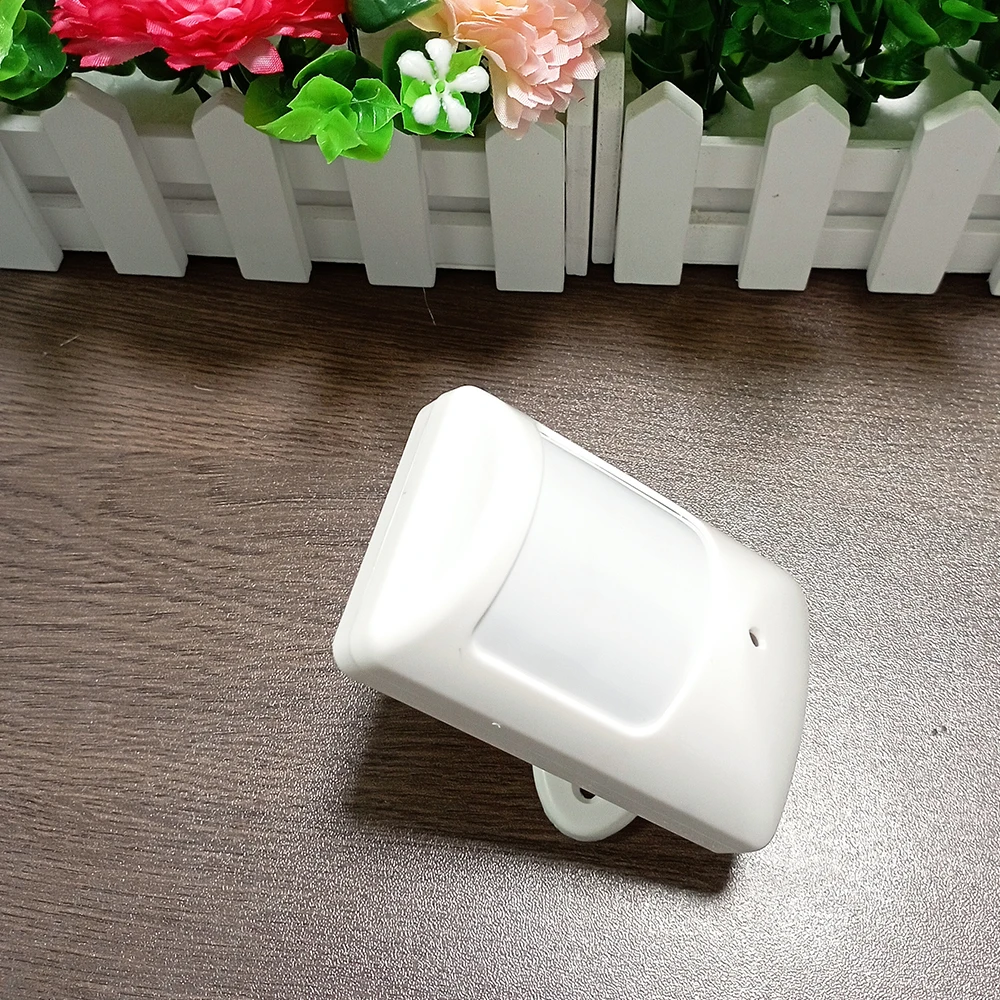

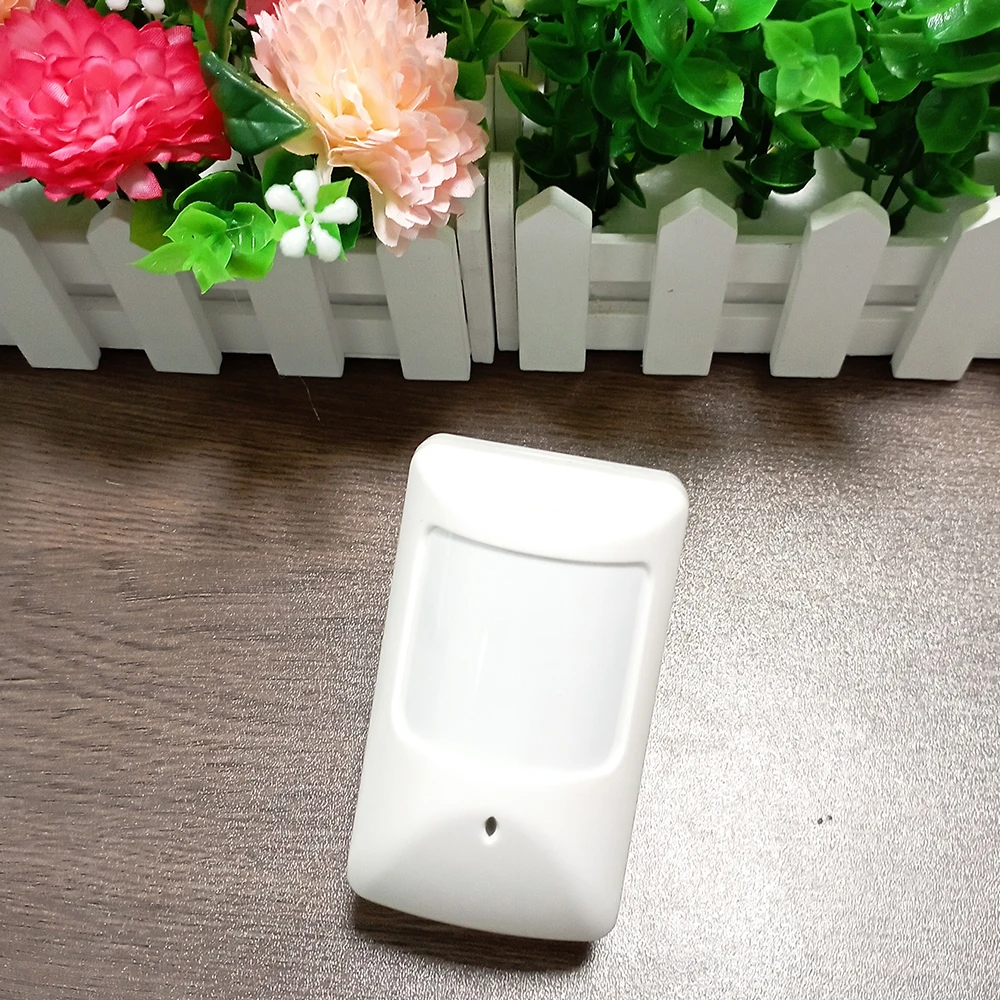

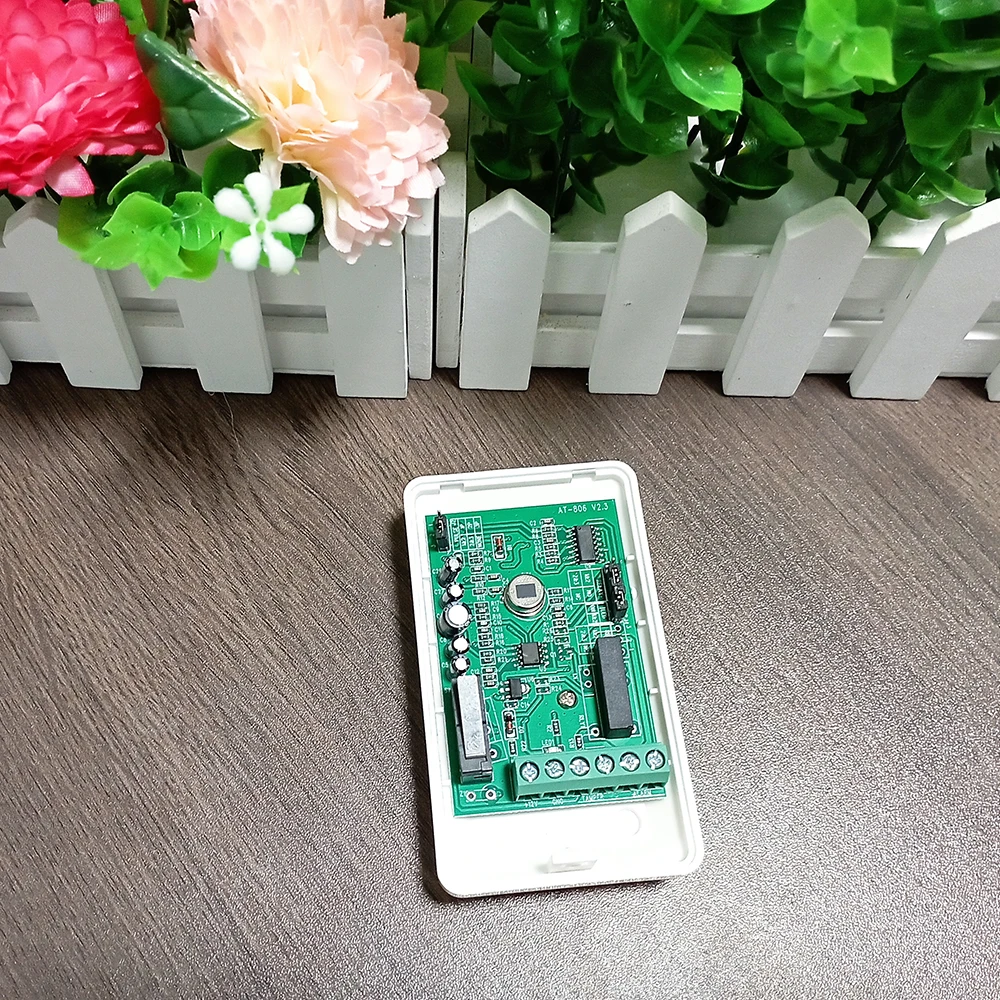

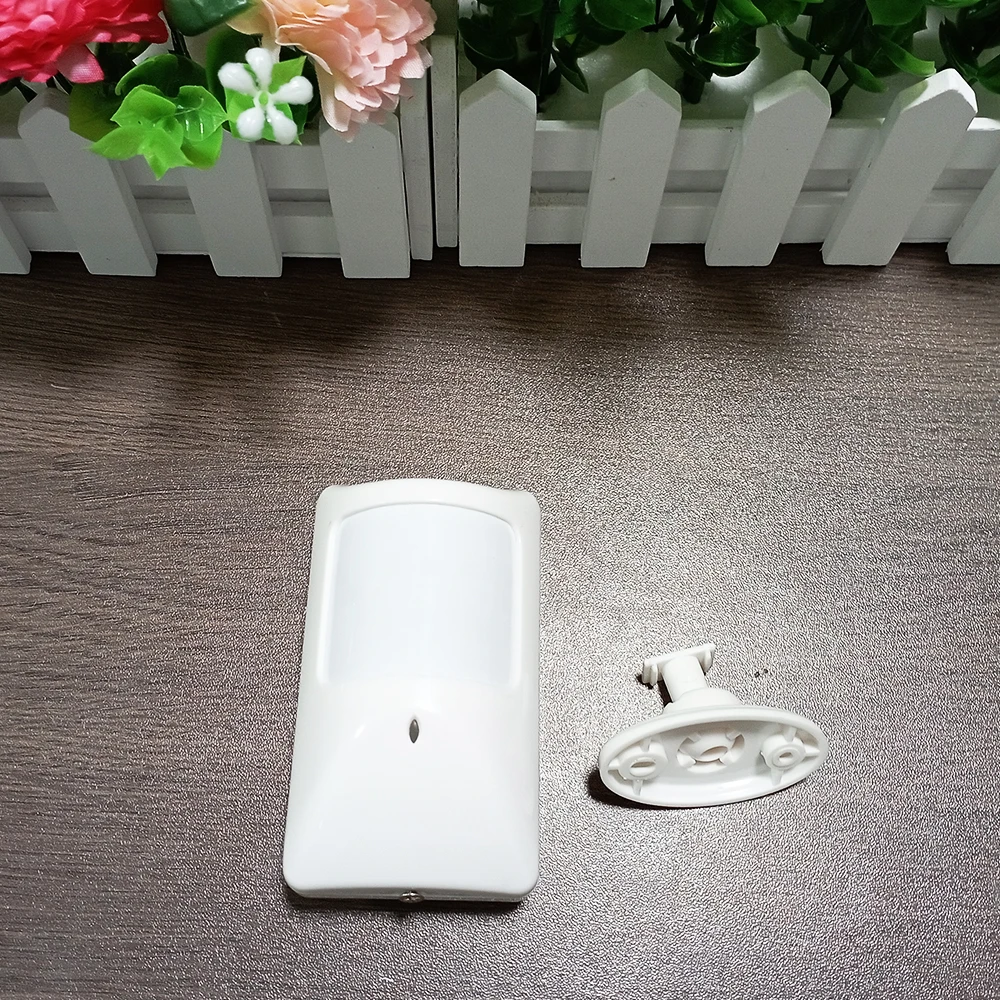

Photo shoot
